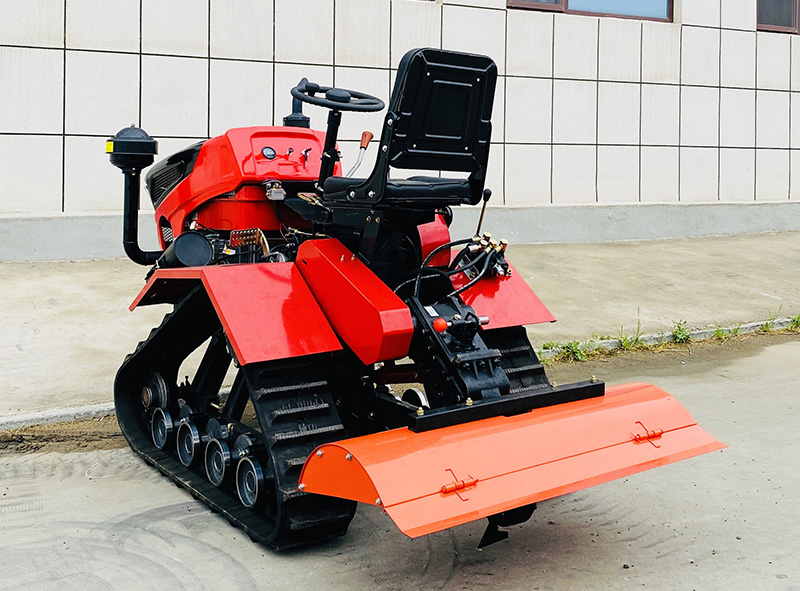

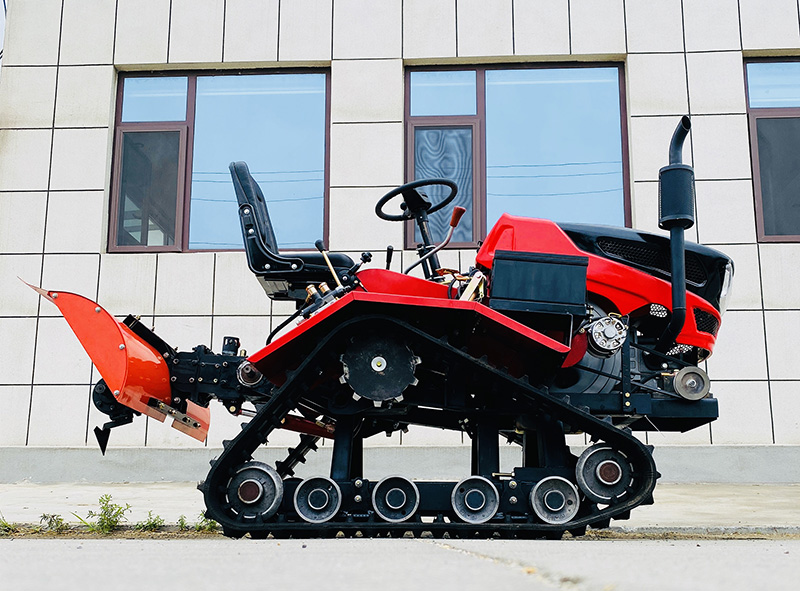

SYNBON 35HP Crawler Rotary Cultivator
Crawler walking, can turn in place, widely used in orchards, farmland, gardens, courtyards and other places.
Standard configuration: Rotary tiller,weeding,Backfill,Ditch
Features & Details
16 sets in 1*20GP container ， 30 sets in 1*40HQ container
Orchard finishing machine: Various auxiliary tools can be installed.
Loaded before installation for engineering construction.
Install ploughs, seeders, harvesters, trenching, backfilling and other tools for farm work.
Install weeder, sprayer for orchard work
35HP Crawler Rotary Cultivator
Length 2300mm Width 1100mm Height 1600mm
Length 720*460mm Width 251mm
Diesel Engine Brand
2200 rpm backfilling soil width 1m
Whole machine weight
About 1-2 liter/mu
The fastest 15KM/h
Customized version of pure gear transmission
3 forward gears, one reverse gear, divided into high and low speeds, a total of 8 gears
The crawler track has strong gripping ability, suitable for small-scale operations such as orchards, greenhouses, woods, etc. It is composed of rubber + five-layer steel wire + iron skeleton, which is not easy to deviate and not easy to derail. Reasons (1. with guide rail 2. with added profile)
Clean the air filter after each work, and add proper amount of engine oil
Water should be added at 3/1 of the water drift, otherwise it is easy to damage the machine parts and reduce the service life
Gearbox mechanical transmission
Standard configuration implement
Rotary tiller width 1m, rotary tiller blade length 1950mm
Weeding width 1m scraping the ground and weeding
Soil width 1m
The trench width is 30cm, the depth is 30cm
Shovel width 1m high 30cm, maximum ground clearance 25cm
Normally about 1-2 acres/hour
Optional configuration implement
All-in-one fertilizing, ditching and backfilling machine, the depth of 0-20CM is the deepest, the fertilizing bucket can hold about 30 kg of fertilizer
The upper ridge surface is up to 50CM, the lower ridge surface is up to 80CM, and the ridge surface is up to 30CM. You can also adjust the ridge surface and height and width according to your needs.
Two plows and traction frame
Broken grass back to the field
The width of the machine is 0.8-1.2 meters, (stalk can be crushed)
The spray diameter is 15 meters, each nozzle can be adjusted independently
