Crawler tractor

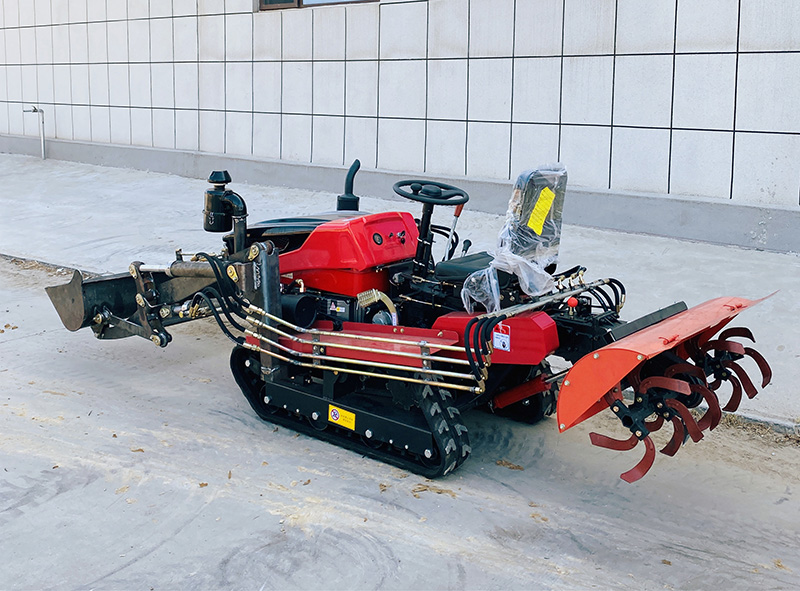

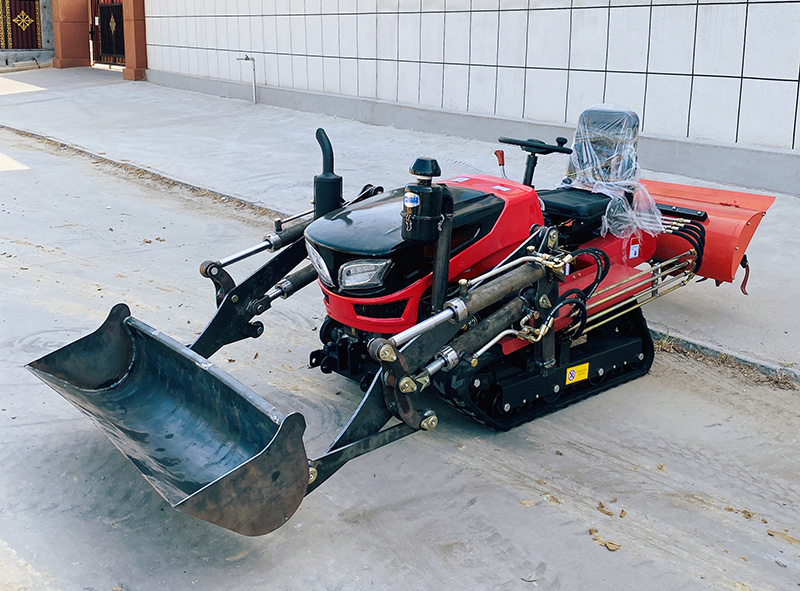

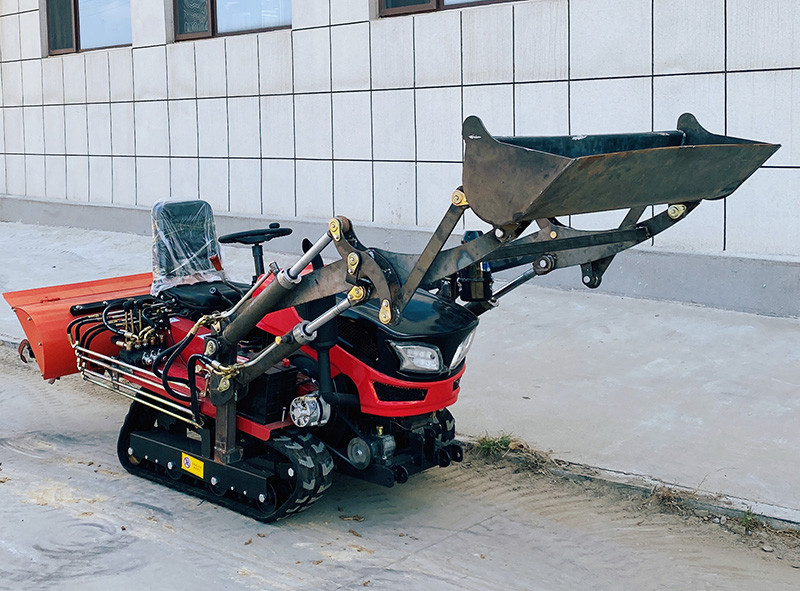

SYNBON 35HP Crawler Rotary Cultivator

Mini cralwer tractor truck Rotary tiller orchard machinery CE certificate

Description

Condition:
Crawler walking, can turn in place, widely used in orchards, farmland, gardens, courtyards and other places.

Standard configuration: Rotary tiller,weeding,Backfill,Ditch,bulldozers

Get a quote

Features & Details

Packaging&Shipping
16 sets in 1*20GP container , 30 sets in 1*40HQ container

Features:
Orchard finishing machine: Various auxiliary tools can be installed.
Loaded before installation for engineering construction.
Install ploughs, seeders, harvesters, trenching, backfilling and other tools for farm work.
Install weeder, sprayer for orchard work

1. The engine needs to add oil: 5L
2. Fuel tank capacity: 16L
3. Need to add gear oil: 5L
4. Need to add hydraulic oil: 5L
5. Precautions for product maintenance: After the machine has been working for 20 hours, the oil of the whole vehicle must be changed. The rotary tiller must be filled with gear oil, and the diesel tank must be filled with diesel. After each work, the air filter must be cleaned and an appropriate amount of engine oil must be added. The engine is of the "burning pot" type, the higher the water temperature in the water tank, the greater the power, so you need to add water from time to time

Specifications

Name

35HP    Crawler Rotary Cultivator

Model

SY354C

Horsepower

35    HP

Dimensions

Length    3100mm Width 980mm Height 1150m

Track    size

Length    180x72x39  Width 180mm

Diesel    Engine Brand

Changzhou    engine

Engine    speed

2200    rpm backfilling soil width 1m

Whole    machine weight

900    kgs

Fuel    consumption

About    1-2 liter/mu

Walking    speed

The    fastest 15KM/h

Gearbox

Customized    version of pure gear transmission

Gear

3    forward gears, one reverse gear, divided into high and low speeds, a total of    8 gears

track

The    crawler track has strong gripping ability, suitable for small-scale    operations such as orchards, greenhouses, woods, etc. It is composed of    rubber + five-layer steel wire + iron skeleton, which is not easy to deviate    and not easy to derail. Reasons (1. with guide rail 2. with added profile)

air    filter

Clean    the air filter after each work, and add proper amount of engine oil

Water    tank

Water    should be added at 3/1 of the water drift, otherwise it is easy to damage the    machine parts and reduce the service life

transfer    method

Gearbox    mechanical transmission

Standard configuration implement

Rotary    tillage

Rotary    tiller width 1m, rotary tiller blade length 1950mm

weeding

Weeding    width 1m scraping the ground and weeding

Backfill

Soil    width 1m

Ditch

The    trench width is 30cm, the depth is 30cm

Bulldozer

Shovel    width 1m high 30cm, maximum ground clearance 25cm

efficient

Normally    about 1-2 acres/hour

Optional configuration implement

Fertilize

All-in-one    fertilizing, ditching and backfilling machine, the depth of 0-20CM is the    deepest, the fertilizing bucket can hold about 30 kg of fertilizer

ridging

The    upper ridge surface is up to 50CM, the lower ridge surface is up to 80CM, and    the ridge surface is up to 30CM. You can also adjust the ridge surface and    height and width according to your needs.

Double    plough

Two    plows and traction frame

Broken    grass back to the field

The    width of the machine is 0.8-1.2 meters, (stalk can be crushed)

Sprayer

The    spray diameter is 15 meters, each nozzle can be adjusted independently
