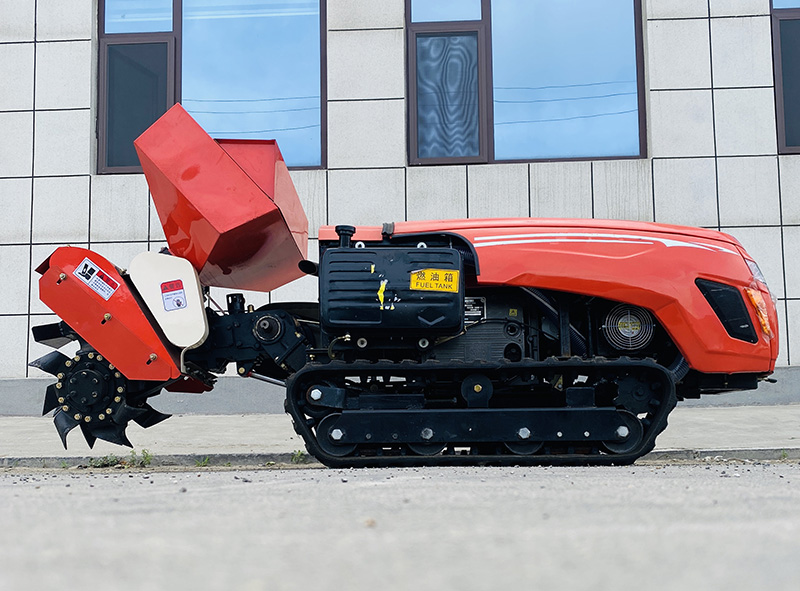

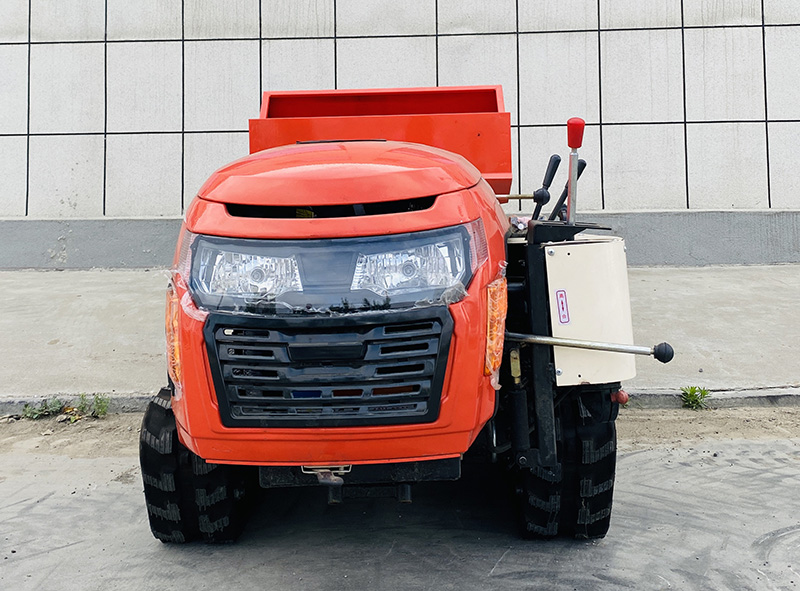

SYNBON 35HP Remote Control Crawler Cultivator
Crawler walking, can turn in place, widely used in orchards, farmland, gardens, courtyards and other places.
Standard configuration: Rotary tiller,weeding,Backfill,Ditch,bulldozers
Features & Details
16 sets in 1*20GP container ， 30 sets in 1*40HQ container
Orchard finishing machine: Various auxiliary tools can be installed.
Loaded before installation for engineering construction.
Install ploughs, seeders, harvesters, trenching, backfilling and other tools for farm work.
Install weeder, sprayer for orchard work
Remote control operation allows construction in very narrow spaces. Especially low orchards
Introduction of the machine:
The frame is reasonably designed with thick steel plate, which is strong and durable, reduces the vibration generated by the engine, and prolongs the life of the machine.
Engine 36 horsepower Changchai, 35 horsepower Changzhou.
The 35 horsepower adopts an integrated gearbox. The transmission and rear power output of this gearbox are in the same gearbox. There are 3 forward gears and 1 reverse gear, which are divided into high and low speeds.
Power output is divided into forward rotation and reverse rotation, high speed and low speed.
After installing a pure gear box, the pure gear drives the farm tools to work.
The driving wheel is made of steel through heat treatment, which is strong and wear-resistant.
The machine adopts a unilateral design of 1 driving wheel, 4 supporting wheels, 1 top wheel, and 1 tensioning wheel. The supporting wheel and tensioning wheel are produced by CNC machining center with enlarged diameter and thicker wheel edge.
Two steel bearings and rubber oil seals are installed in each wheel to enhance the flexibility of the wheel. The oil seal can prevent dirt and other impurities from entering the wheel and prolong the service life of the wheel.
The sheet metal parts of the machine are made of steel plate with a thicker than T3, which is strong and durable and not easy to deform.
The paint color adopts high-quality plastic spraying powder, which has strong adhesion and will not cause paint peeling and rust.
The steering wheel is used for left and right steering, which is simple to operate, more popular, and not easy to damage or malfunction.
The crawler is made of rubber + steel wire + iron framework. The crawler has a large area attached to the ground, which enhances friction, makes steering and walking more flexible, and does not cause problems such as rollover and tilt.
The installation of a 500w all-copper generator can ensure that the machine will not be unable to start due to lack of power, and the battery will lose power, which extends the service life of the battery.
The air filter adopts the oil type, which can effectively filter the dust and soil generated when the agricultural tools are working, ensuring the normal operation of the engine and prolonging the service life of the engine.
The circuit adopts all copper wires, has multiple insurances, and is easy to operate in the form of plugs. The outside of the circuit is protected by a thick plastic soft shell to prevent wire aging and damage from causing short circuit.
The line installation is fixed by tools such as iron clips, wire ties, etc., and the installation is stable and will not fall off.
(Compared with 25 horsepower, the advantages: 1. Large power, high work efficiency, 2. A hood can be installed, which can effectively protect precision parts such as the engine. 3. The work effect such as rotary tillage is remarkable. 4. The operation space is increased, and it is easy to use. Easier and smoother operation.)
35HP Remote Control Crawler Rotary Cultivator
Length 3100mm Width 980mm Height 1150m
Length 180x72x39 Width 180mm
Diesel Engine Brand
2200 rpm backfilling soil width 1m
Whole machine weight
About 1-2 liter/mu
The fastest 15KM/h
Customized version of pure gear transmission
3 forward gears, one reverse gear, divided into high and low speeds, a total of 8 gears
The crawler track has strong gripping ability, suitable for small-scale operations such as orchards, greenhouses, woods, etc. It is composed of rubber + five-layer steel wire + iron skeleton, which is not easy to deviate and not easy to derail. Reasons (1. with guide rail 2. with added profile)
Clean the air filter after each work, and add proper amount of engine oil
Water should be added at 3/1 of the water drift, otherwise it is easy to damage the machine parts and reduce the service life
Gearbox mechanical transmission
Standard configuration implement
Rotary tiller width 1m, rotary tiller blade length 1950mm
Weeding width 1m scraping the ground and weeding
Soil width 1m

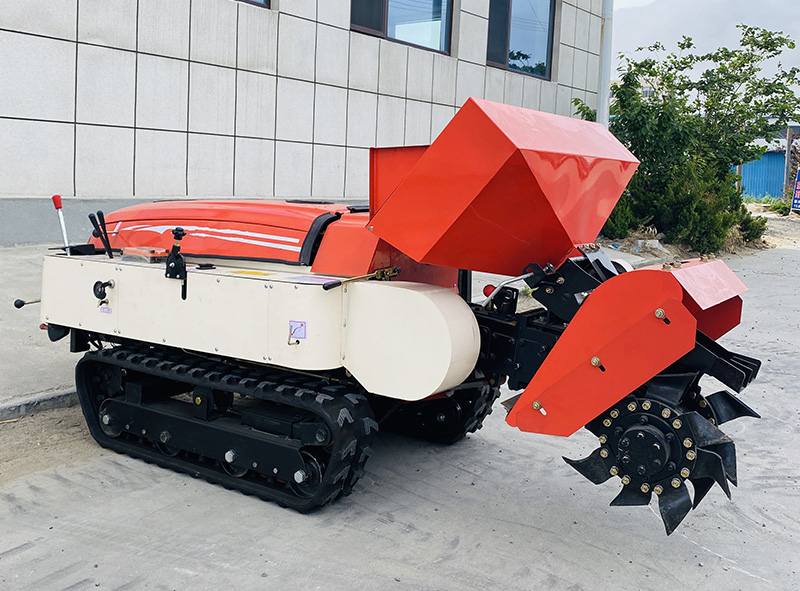

The trench width is 30cm, the depth is 30cm
Shovel width 1m high 30cm, maximum ground clearance 25cm
Normally about 1-2 acres/hour
Optional configuration implement
All-in-one fertilizing, ditching and backfilling machine, the depth of 0-20CM is the deepest, the fertilizing bucket can hold about 30 kg of fertilizer
The upper ridge surface is up to 50CM, the lower ridge surface is up to 80CM, and the ridge surface is up to 30CM. You can also adjust the ridge surface and height and width according to your needs.
Two plows and traction frame
Broken grass back to the field
The width of the machine is 0.8-1.2 meters, (stalk can be crushed)
The spray diameter is 15 meters, each nozzle can be adjusted independently
