Product parameters
|
Max. capacity |
4000kg |
|
Max. lifting height |
10.6m |
|
Max. outreach |
6.1m |
|
Length to face of forks |
7.0m |
|
Min transport size |
5.1m |
|
Track width |
1.78m |
|
Wheelbase |
3.15m |
|
Ground clearance |
0.35m |
|
Overall cab width |
0.84 |
|
Lifting |
10s |
|
Lowering |
7s |
|
Extension |
12s |
|
Retraction |
8.6s |
|
Crowd |
4.8s |
|
Dump |
3.4s |
|
Engine brand |
Yuchai |
|
Power |
114 Hp / 85 kW |

Product Features

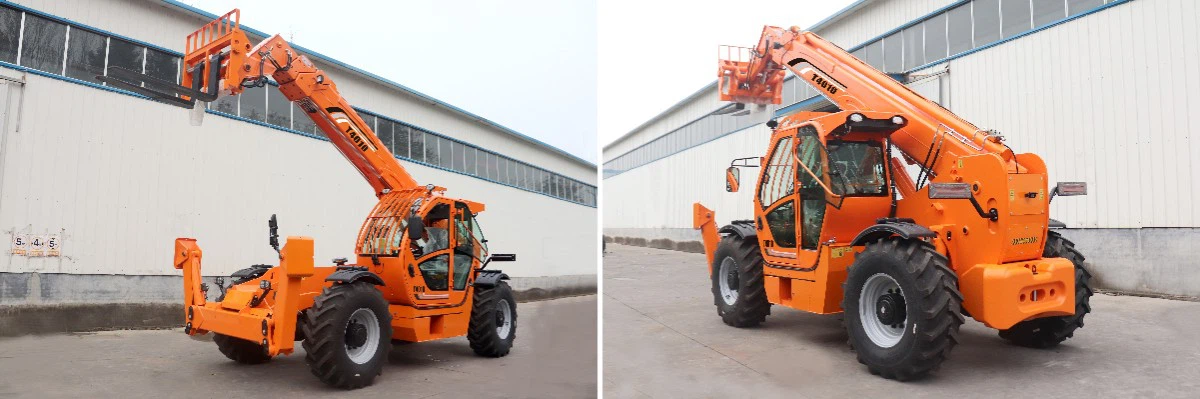

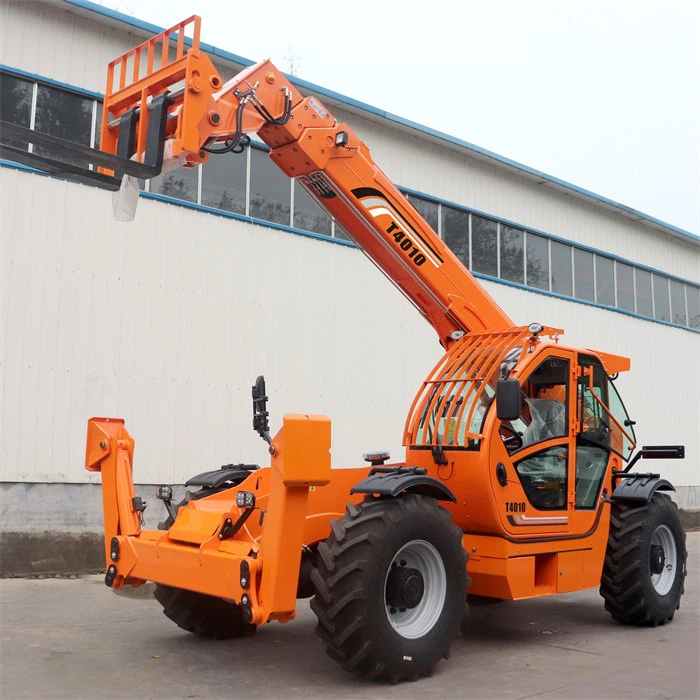

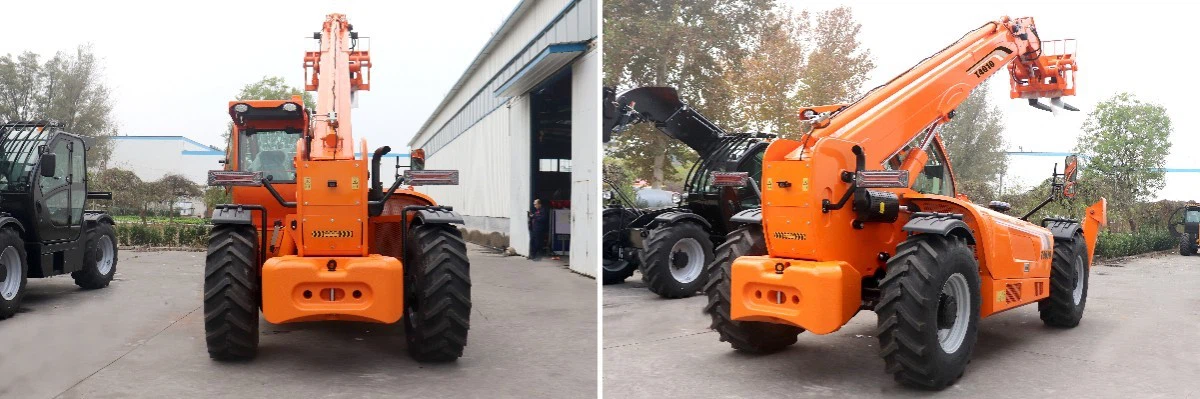

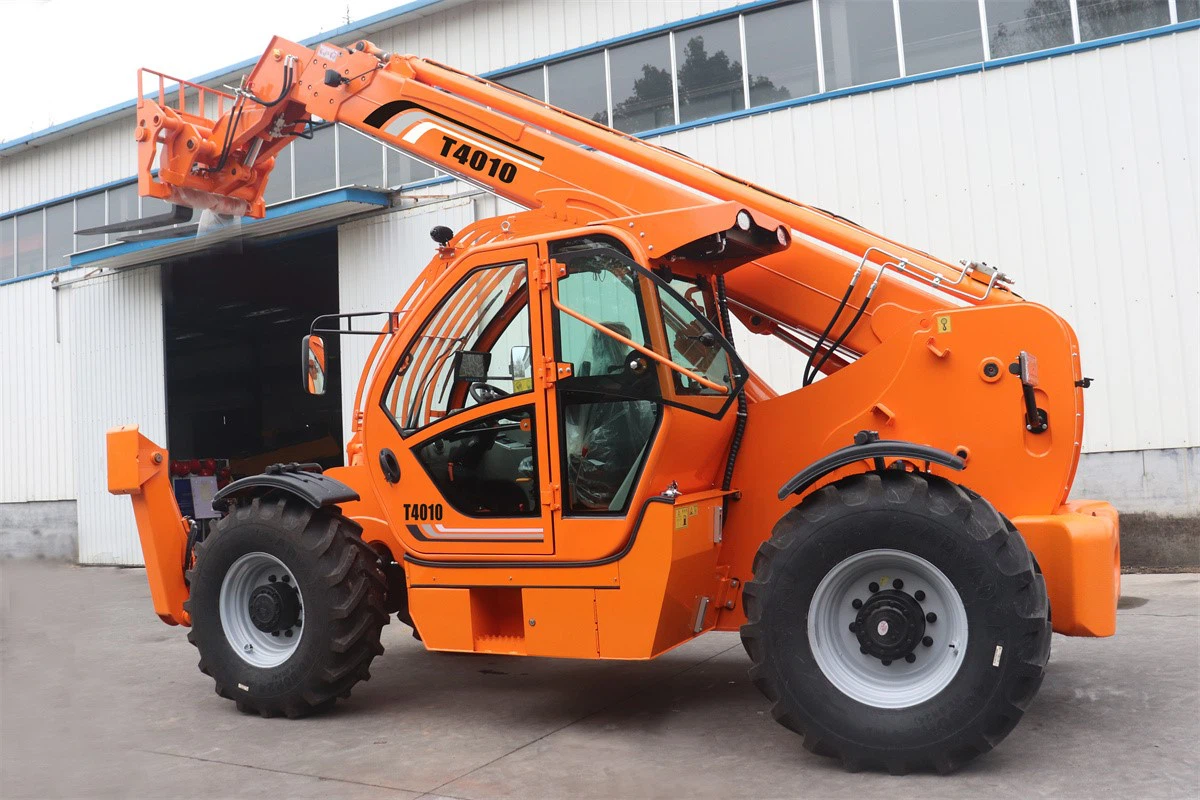

1.The maximum lifting height reaches 10.6m, combined with a maximum working radius of 6.1m, this telescoping boom forklift can cover scenarios such as high-rise shelves and second-floor Windows of buildings.
2.The high-efficiency telescopic system enables the telescopic arm to fully extend in just 12 seconds and retract in 8.6 seconds, significantly enhancing the cycle efficiency.
3.Yuchai engine guarantee reliability,85kW YUCHAI diesel engine balance power output and fuel economy.
4.Heavy-duty design , 4000kg rated load suitable for medium building materials, industrial equipment handling.

Product application
High-level access in logistics warehouses, material transfer between building floors, installation and maintenance of factory equipment, etc. need to take into account high extensibility, heavy load, narrow space mobility .
