Your Professional Telescopic Loader Supplier

Synbon Machinery was founded in 2013, with its headquarters located in Jinan, Shandong Province. We are committed to building a global system for construction and agricultural machinery. Our leading products include high-configuration backhoe loaders, excavators ranging from 1.0 ton to 120 tons, wheel loaders with capacities from 0.8 to 6 tons, four-wheel tractors from 25 HP to 260 HP, and telehandlers.

Telescopic Forklift Loader
Max. Loading capacity of small boom: 600kg. Transmission Type: Closed Hydro-static. Operation weight: 2200kg. Bucket Capacity: 0.3m³. Lifting Height of main boom: 3000mm
Telescopic Wheel Loader
Max. load: 2500kg . Weight: 6000KG. Rated Power:76KW. Max. Discharge height:4400mm. Capacity: 1.2m³

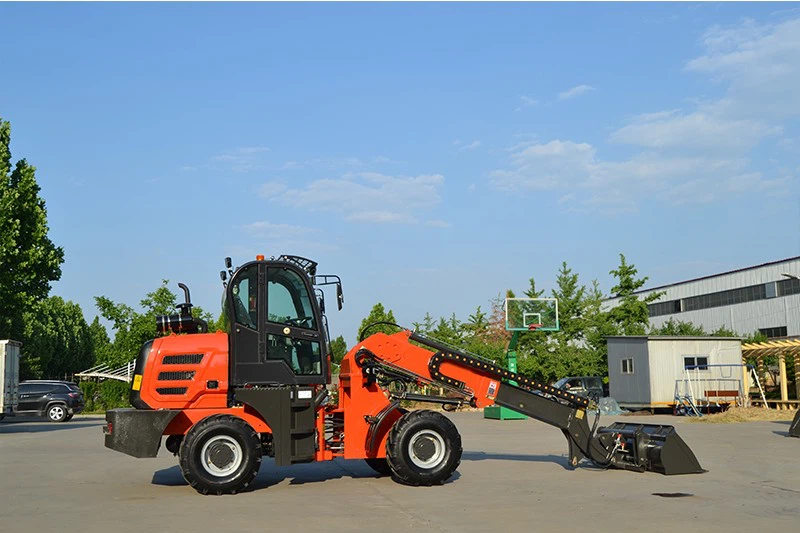

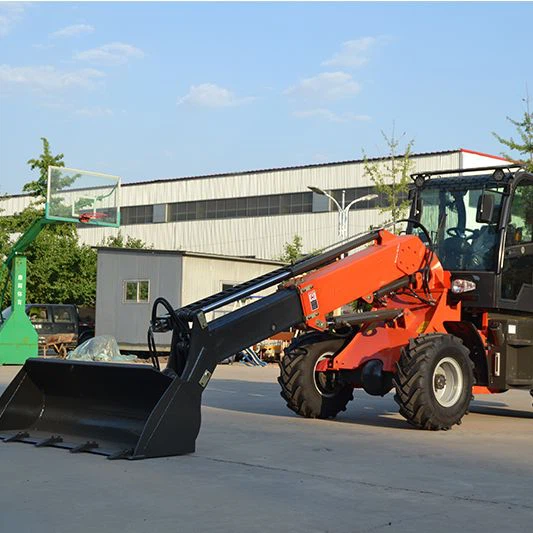

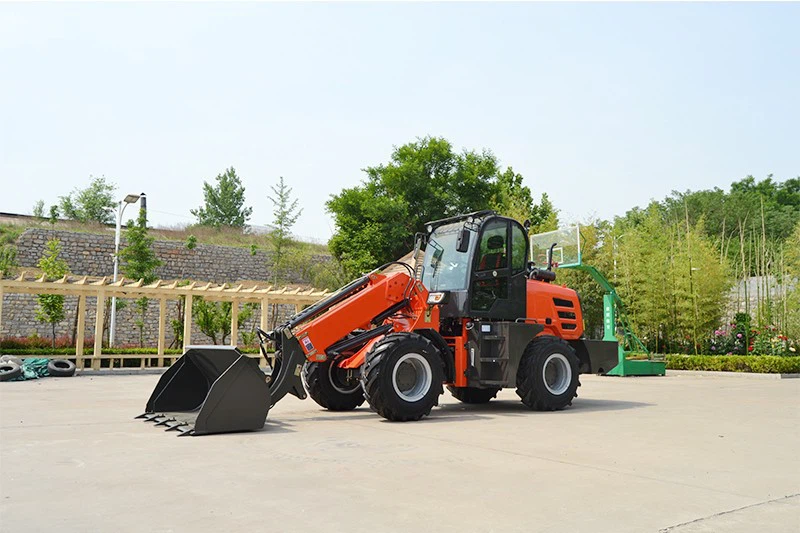

Telescopic Compact Wheel Loader
Operating Weight: 2000kg. Rated Power: 65KW. Capacity: 1.0 m³. Max. Discharge height: 4400mm
Mini Telescopic Loader
Operating Weight: 3000kg. Rated Power: 85KW. Capacity: 1.5 m³. Max. Discharge height: 5000mm

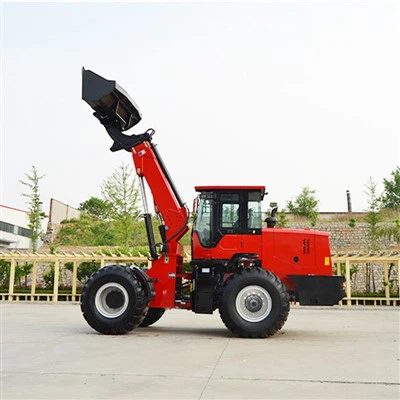

Articulated Telescopic Loader
Operating Weight: 4000kg. Rated Power: 129KW. Capacity: 2.0m³. Max. Discharge height: 5400mm
Articulating Boom Loader
Lifting Height of main boom: 3000mm. Dumping Height of main boom( dumping angle 45°): 2100mm. Max. Loading capacity of main boom: 800kg. Power: 17.8kw
Telescopic Articulated Wheel Loaders
SYNBON telescopic wheel loader is an efficient construction machinery that adopts an innovative articulated steering system and a telescopic boom design.
Telescopic Boom Loader
The telescopic boom loader integrates the functions of excavation, loading and handling, and is suitable for composite scenarios such as material transfer at construction sites and high-altitude
Telescopic Front End Loader
SYNBON telescopic front-end loader is a multi-functional construction machinery equipment. Its core feature is that it has a telescopic boom structure, which can flexibly adjust the working radius

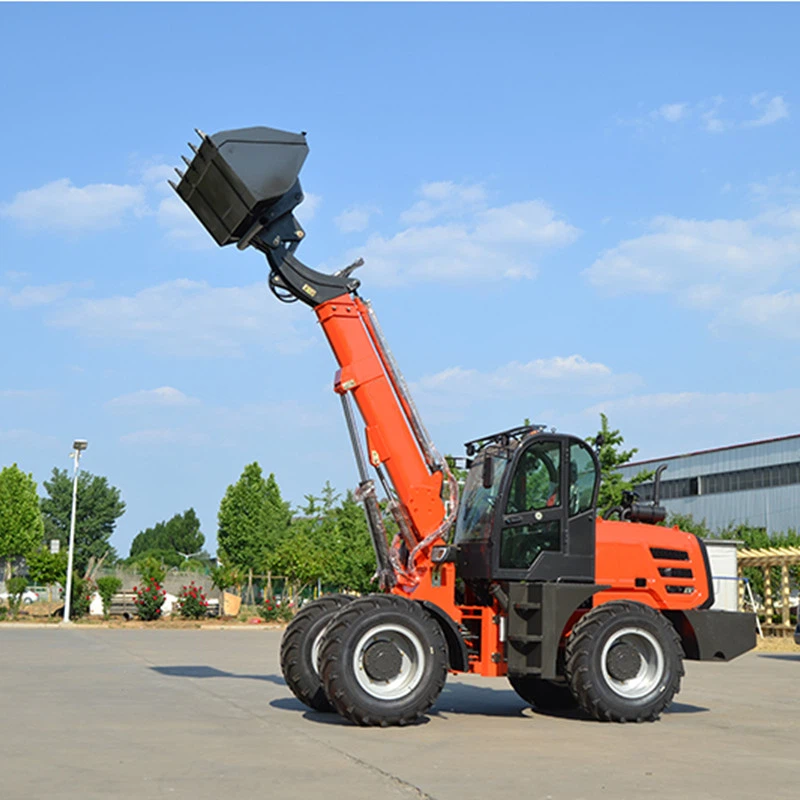

Telescopic Front Loader
Overall Dimensions: 6500*2000*2860mm. Min. Discharge height: 3400mm. Rated Power: 76kw. Max. load: 2500kg including bucket or attachment

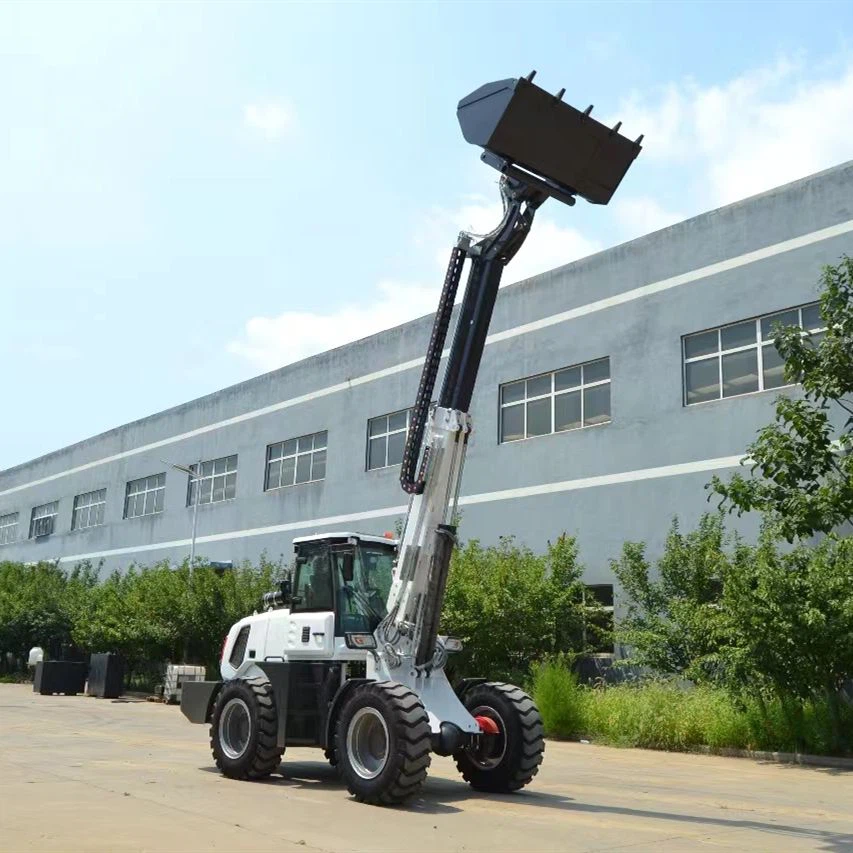

Telescopic Mini Loader
The telescopic mini loader has a small and flexible body and is equipped with a retractable arm, which can operate in a small space. Its rated load is usually between 0.6 tons and 2.5 tons, and the
Telescopic Tractor Loader
Telescopic tractor loader is a multifunctional agricultural and industrial machinery, usually designed on a tractor platform and equipped with a retractable hydraulic arm.

Why Choose Us

Sales Market

Relying on years of industry experience and strong capabilities in production innovation, the Synbon team has sold its equipment to Russia, Ukraine, Germany, Algeria, South Africa, Brazil, Canada, and other countries.

Certification

Thanks to our consistent commitment to high quality, we have obtained ISO 9001 quality certification, as well as EAC and CE certificates. As a result, our main products—wheel loaders, tractors, and self-loading concrete mixers—enjoy strong popularity for their safety and quality.

OEM Service

In addition to our innovative and versatile products, we offer a wide range of OEM services to help you impress your customers. These services can effectively promote your brand and support the growth of your wholesale and distribution business.

Details and Parameters

SY180T telescopic loader
Operation weight	2200kg
Bucket Capacity	0.3m³
Lifting Height of main boom	3000mm
Dumping Height of main boom( dumping angle 45°)	2100mm
Dumping reach of main boom	587mm
Max. Loading capacity of main boom	800kg
Lifting height of small boom	3600mm
Dumping height of small boom (dumping angle 45°)	2800mm
Dumping reach of small boom	1085mm
Max. Loading capacity of small boom	600kg
Max. Speed(F1/R1)	12km/h
Max. Traction force	16.66KN
Max. Breakout Force	15KN
Max. Grade-ability	25°
Max. Turning angle	35°
Dimension
Overall length (bucket on ground position)	3820mm
Overall width	1260mm
Overall Height	2310mm
Wheel base	1507mm
Tread	890mm
Min. Ground clearance	220mm
Engine
Engine brand/model	CHANGCHAI 3M78
Type	Water cooled
Rated Power	17.75kw
Rated Speed	2600r/min
Number of cylinders	3
Emission standard	EURO5
Optional engine	EPA4/EURO5 Perkins or Kubota or Yanmar engine
Transmission
Type	Closed Hydro-static
Pump type	Variable displacement piston
Pump Pressure	28MPa
Axle	Bevel gear reduction
Main drive reduction ratio	3.75
Driving	Four wheel drive
Tire	10.0/75-15.3
Optional tire	31*15.5-15
Steering System
Type	All hydraulic steering
System Pressure	16
Steering pump type	Gear pump
Steering diameter	63
Stroke	171
Quantity	1
Braking System
1) Foot Brake type	Disc brake
2) Hand brake (parking brake) type	Drum brake
Working hydraulic system
Work pump type	Plunger pump
Oil flow	13.8ml/r
Working pressure	16Mpa
Voltage	12V
Battery brand	Avatar
Starter Type	Electric
Packing quantity	3 Units/120HQ 7Units/140HQ

Key Features of Telescopic Loader

Adjustable fork: This component allows the telehandler to lift materials directly off the ground. You can also tilt your load forward or backward for effective stability and balance.

A flexible boom: The extendable arm can move forward and upward in addition to left and right, letting the telehandler reach various distances and heights. The boom can also extend and retract as needed to maneuver around jobsite obstacles.

Stabilizers: These outriggers protrude from the base of the equipment. They provide stability while lifting heavy cargo on uneven terrain or at elevated heights. Stabilizers also help prevent wheel movement, boosting load capacity.

Steering modes: Telehandlers offer multiple steering options. With front-wheel steering, only the front wheels turn. Four-wheel steering means the front and rear wheels rotate in opposite directions. There’s also crab steering, where all four wheels rotate in the same direction. These different types allow you to steer based on the load you’re transporting. As such, it’s easier to move around different worksites, from flat, open spaces to confined areas.

Frame leveling: Frame leveling tilts the axles so the telehandler remains even on rough or unstable ground.

A Telescopic Loader Of Several Basic Components

Shanghai Jwell machinery Workshop co-operation projects

Telescopic boom

A key component, allowing loads to be lifted and carried to different heights. Chassis. Robust four-wheel drive design for mobility and stability even on rough terrain.

Working attachments

A variety of interchangeable attachments that can be adapted to specific tasks such as loading or lifting work.

Operator's cab

Comfortable work station with intuitive control systems, designed with ergonomics and safety in mind.

Applications Of The Telescopic Loader

Wood chipping

Loads lifting

Trench digging

Truck loading

Grass or wood handling

Recycling service

Leveling or earthmoving

Debris or snow removal

Selecting the Right Telescopic Loader

Assess Your Needs: Determine the specific tasks you need the telehandler to perform. This helps in selecting the appropriate size and attachments.

Check Manufacturer Reputation: Opt for machines from well-known manufacturers who offer robust after-sales support and warranties.

Inspection and Certification: Ensure that the equipment meets the required safety and operational standards. An inspection certificate can provide assurance of its condition.

Rental vs. Purchase: Depending on the duration and frequency of use, you may choose to rent instead of purchasing to save costs.

Service and Maintenance: Check if the provider offers ongoing service and maintenance support to keep the machine in optimal working condition.
