Features & Details
Benefits and Features

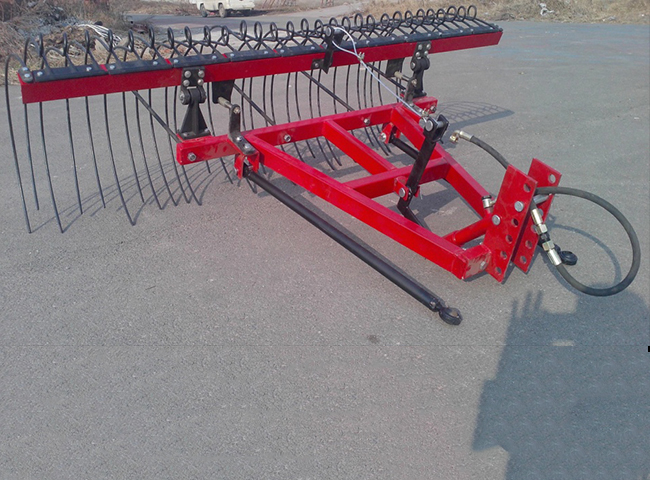

9GL hay rake,matched with asmall four-wheel tractor,is mainly for the collection after forage grass harvesting,the machine adopts hydraulic system,spring steel tine.It can realize the offloading by the hydraulic system.
Advantage
Attached to 15-50hp
Collect the pasture,alfalfa etc.
The tine is 65MN spring steel(diameter:7mm-8mm)
Specifications
| Model | Loading weight | Working width | Weight | Matched power | Brake |
| 9GL-1.4 | 3000kg | 1400mm | 90kg | 15-20hp | Two point to support |
| 9GL-1.6 | 4000kg | 1600mm | 95kg | 18-20hp | |
| 9GL-1.8 | 5000kg | 1800mm | 100kg | 20-25hp | |
| 9GL-2.1 | 6000kg | 2100mm | 110kg | 30-50hp |
