Features & Details
Benefits and Features

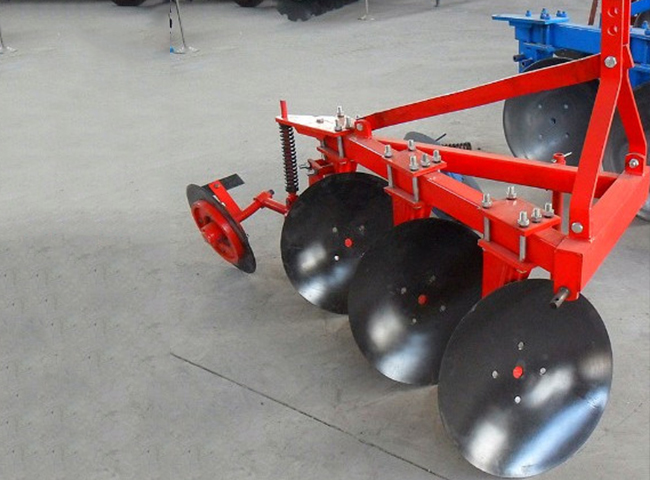

DIsch plough is attached to four-wheel tractor,the discs of plough are revolving to furrow the land during operation.The disc plow is especially suitable for land which have weeds,stems and frictional soil with small brick etc.
Advantages
Not winding grass,not block and no hip building-up.
Easy to cut off stems and roots.
Less working resistance
Specifications
Model | Nos of disc | Size of disc | Working width | Working depth | Weight | Matched power | Linkage |
1LYQ-220 | 2 | 20"*4mm | 400mm | 200mm | 150kg | 18hp | Three-poingt suspension I type |
1LYQ-315 | 3 | 18"*3mm | 450mm | 180mm | 180kg | 25hp | |
1LYT-320 | 3 | 20"*4mm | 600mm | 200mm | 200kg | 30-50hp | |
1LYT-325 | 3 | 26"*6mm | 750mm | 250mm | 420kg | 50-80hp | Three-poingt suspension II type |
1LYT-425 | 4 | 1000mm | 490kg | 90hp | |||
1LYT-525 | 5 | 1250mm | 565kg | 120hp | |||
1LYT-625 | 6 | 1500mm | 740kg | 160hp | |||
1LYT-230 | 2 | 28"*6mm | 600mm | 300mm | 380kg | 45hp | |
1LYT-330 | 3 | 900mm | 450kg | 60hp | |||
1LYT-430 | 4 | 1200mm | 530kg | 100hp | |||
1LYT-530 | 5 | 1500mm | 610kg | 130hp |
