Backhoe Loader

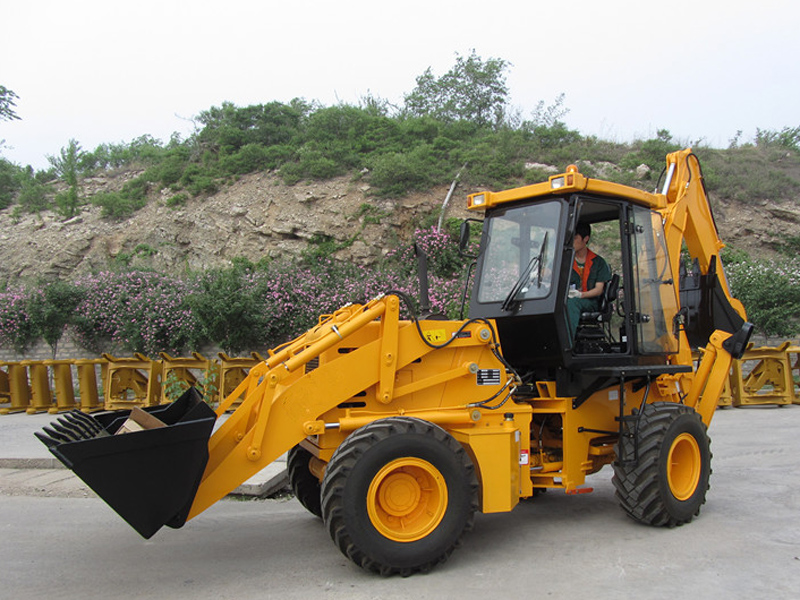

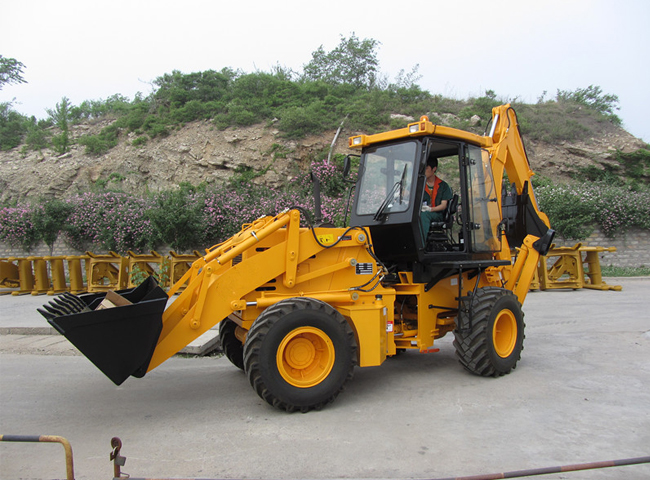

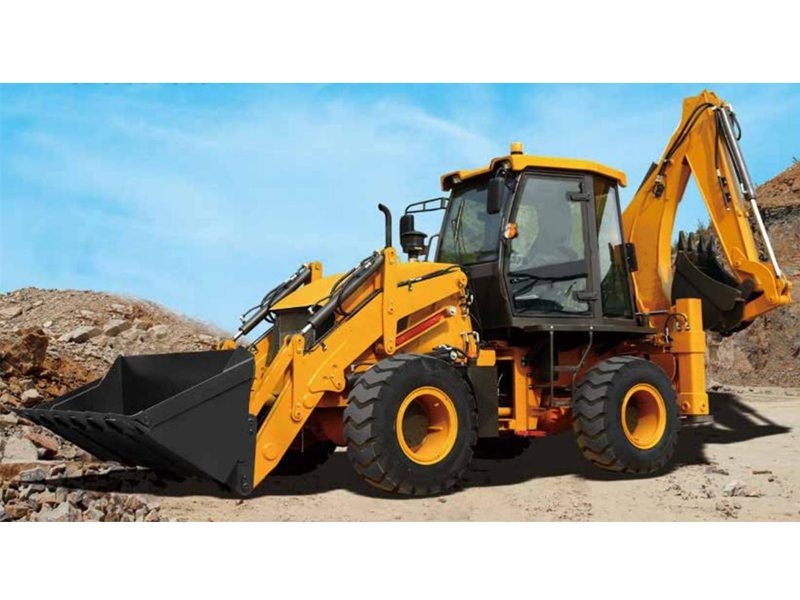

Backhoe Loader SY747A

Excavation, front shovel, mini tractor backhoe loader.

Description

Overall Weight:          7640 KG

Rated Loading Weight:    2500 KG

Bucket Capacity:         1.4m3

Backhoe Capacity:        0.3 m3

Rated Power of Engine:    74KW

Condition :

Excavation loading dual-purpose machinery for construction, municipal, pavement construction, etc.

Yuchai turbocharged engine with strong power, low noise and reliable performance.

Get a quote

Features & Details

Description

Backhoe loaders are often used in a variety of projects that require excavation and treatment of soil. For example, trenches need to be dug to lay pipes and underground cables to lay the foundation for the building. In order to establish a drainage system, trenches need to be excavated. While many other tools can do the job, the tap loader can significantly improve efficiency. In contrast, backhoe loaders are much smaller than large single-function devices such as crawler excavators. They can walk around different construction sites and even run on the road. While some small loaders and excavator equipment may be smaller than backhoe loaders, using a backhoe loader can save significant time and money if the contractor also needs a digging and loader.


Features

1.its forward and backward directions are switched by electric hydraulic control.

2.The loader working device is an eight-bar automatic leveling mechanism.

3. Its chassis is an integral type special chassis featured in strong rigidity, impact resistance and compact size.

4.four-cylinder supercharged engine is featured in high fuel efficiency, low emission and large power margin.


Benefits

1.The bucket is leveled automatically while hoisting, in order to avoid scattering and ensure stable working.

2.The excavator working device can rotate 180 degrees along the gyration center at the back of the frame.

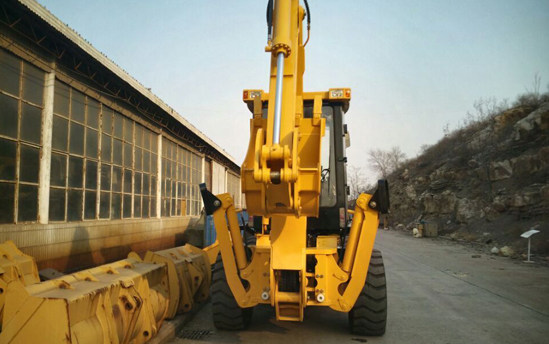

3.The A/H-shaped stabilizer and the center-positioned excavating device are strong in working stability.

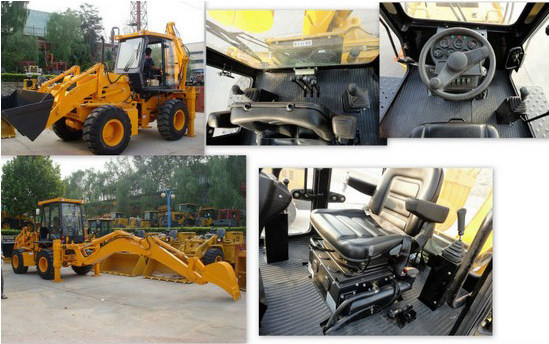

Detail Picture

SYNBON Backhoe loader Series



Packaging and Shipping

1 sets in 1*40HQ container


FAQ

Q1. What is your production strength?

Over 15 years of wheel loader production experience, with an annual output of 100 units.

Our wheel loader have passed the ISO 9001 international quality certification system and China 3C quality system. We have obtained EAC and CE certification abroad.


Q2 Which countries have you exported?

Myanmar, Thailand, Kazakhstan, Uzbekistan, Russia, Ukraine, Australia, Brazil, Colombia, Germany, Czech Republic, Sudan, Tunisia, Benin, Congo.


Q3 What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. Weand#39;ll show you the photos of the products and packages before you pay the balance.


Q4.  How about your delivery time?

A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some in stock.


Q5. What is your warranty policy?

A: We can supply one year warranty for our machines. We will provide parts as free within warranty. We can provide internet or calling service at any time.

Specifications

ModelSY747A
Overall Operating Weight7640KG
Transport Dimension
mm L*W*H5910×2268×3760
Wheel base2250mm
Min. Ground Clearance300mm
Bucket Capacity1.4m³
Breakout Force38KN
Loading Lifting Capacity2500KG
Bucket Dumping Height2742mm
Bucket Dumping Distance1062mm
Digging Depth52mm
Backhoe Capacity0.3m³
Max. Digging Depth4082mm
Swing Angle of Excavator Grab190°
Max. Pulling Force39KN
Engine
ModelCommics(dongfeng ) Engine
TypeIn Line Direct injection Four-Stroke and Injection Combustion Chamber
Cylinder-Inside Diameter*Stroke4-102×120
Rated Power74KW
Rated Speed2200r/min
Min. Fuel Consumption≤216g/km.h
Max.Torque≥410N.M/1500r/min
Displacement3.9L
Steering System
Model of Steering DeviceBZZ5-250
Steering Angle±36 °
Min. turning radius5018mm
Pressure of the system12Mpa
Transmission System Torque Converte
ModelYJ280
TypeSingle-stage Three Elements
Max. Efficiency84.40%
Inlet Pressure0.4Mpa—0.55 Mpa
Outlet Pressure1.2Mpa—1.5 Mpa
Cooling MethodOil-cooling Pressure Circulation
Gearbox
TypeFixed Shaft Power Transmission
Oil Pressure of Clutch1373Kpa—1569 Kpa
GearsTwo Gears Ahead, Two Gears Astern
Max.Speed22Km/h
Brake System
Service BrakeAir Over Oil Caliper Brake
External Type
Self-balance
Self-regulation
Emergency BrakeEmergency Brake
Manual Operation Power Terminating Brake
Hydraulic System
Digging Power of Excavator Grab46.5KN
Digging Power of Dipper31KN
Bucket Lifting Time5.4S
Bucket Lowering Time3.1S
Bucket Discharge Time2.0S
Axle
ManufacturerFeicheng Axle Factory
Main Transmission TypeDouble Reduction
Rated Loader of Axle7.5T
Final ReducerSingle Stage Final Reducer
