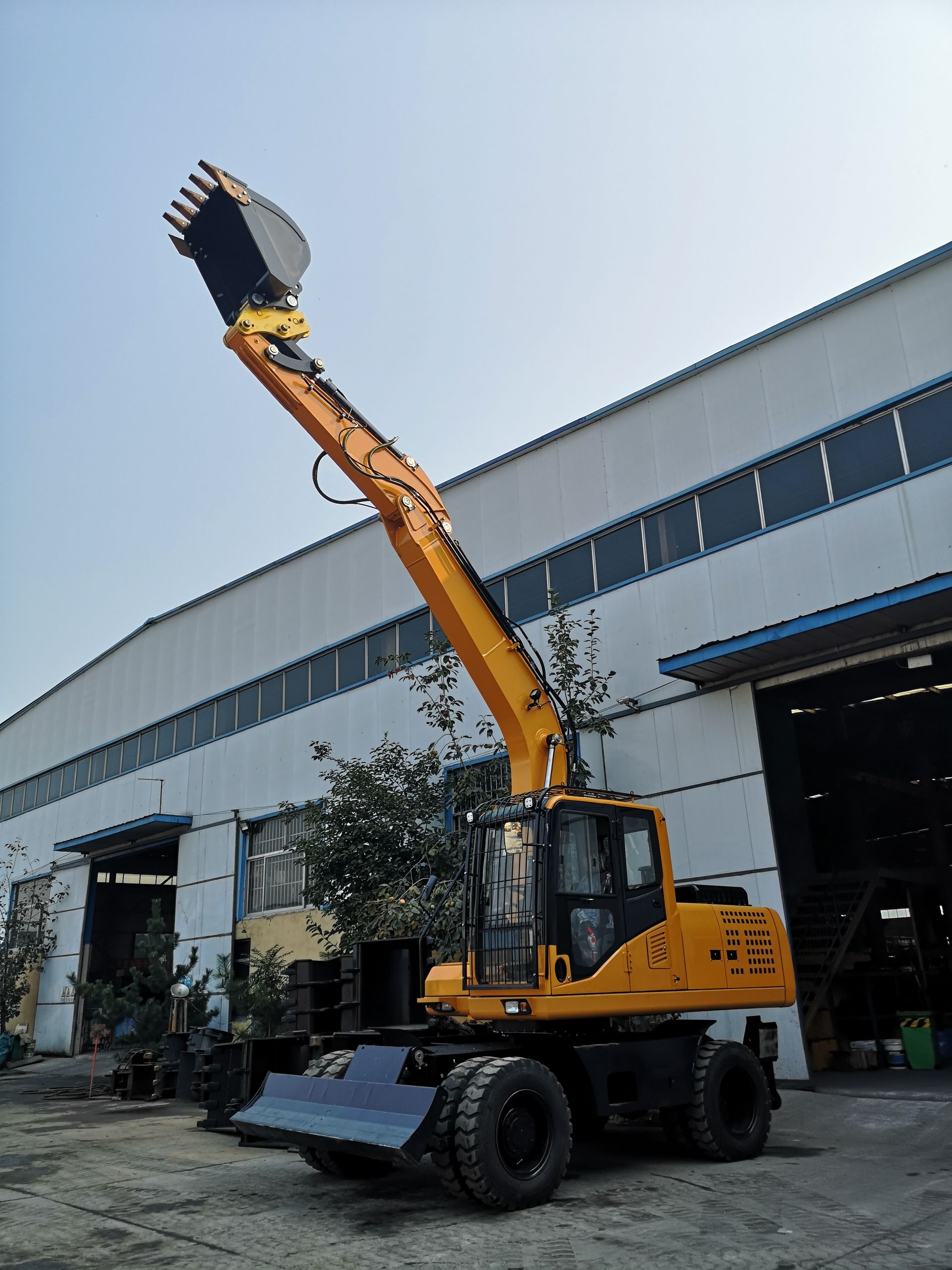

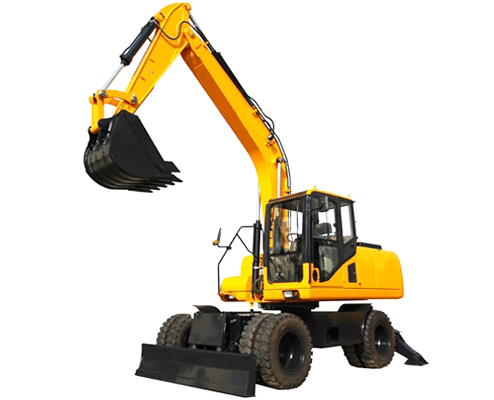

SYNBON Wheel Excavator SYL615E
Description
Operating weight 13.5 ton
Power 92kw
Bucket Capacity 0.6m3
Overall size 7520*2570*3425mm
Condition:
Urban construction, road construction, landscape engineering, farmland transformation, mining engineering, etc., working conditions are narrow and complicated
Full imported hydraulic parts,double fuel filter,Yuchai Engine,
Features & Details
Product Feature And Advantage
1.Full imported Korea hydraulic parts ensure the stable quality.
2.Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency
3.Famous Yuchai Engine, high efficiency, low repair cost.
4.equipped with double fuel filter to guarantee fuel purity to protect engine
5.extend hydraulic line for various attachments.

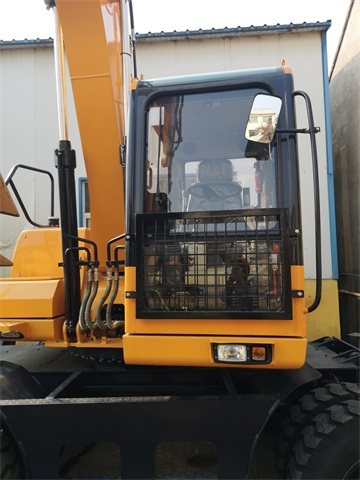

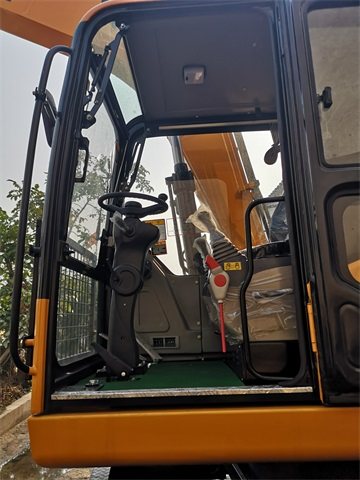

6.Full sealed cabin with A/C and comfort seat make operator easy to work.
7.Opening covering parts makes the maintenance easy to proceed.
|
|
|
|
|
|
Specifications
Engine | ||
Model | Yuchai 4D125 92kw | |
power | 92kw -2200RPM | |
Type | Direct injection, water cooled, Super charged | |
No. of cylinder | 4 | |
Main Performance | ||
Swing Speed | 0-12 | r/min |
Traveling Speed | 32 | km/H |
Grade ability | 25 | ° |
Bucket Digging Force | 91 | kN |
Arm Digging Force | 55 | kN |
Hydraulic System | ||
Main Pump | KPM | |
Main Valve | Doosan | |
Swing Motor | Sunjin | |
Traveling Motor | Sunjin | |
Overall Dimensions | ||
Overall L*W*H | 7520*2570*3425 | mm |
Ground clearance | 350 | mm |
Undercarriage width | 2570 | mm |
Operation parameters | ||
Operation Weight | 13.5 | ton |
Bucket Capacity | 0.6 | m3 |
Max. Digging Radius | 8000 | mm |
Max. Digging Depth | 4750 | mm |
Max. Digging Height | 8930 | mm |
Max. Dumping Height | 6520 | mm |
Max. Dozer Cutting | 100 | mm |
Max. Dozer Lifting | 400 | mm |
Tail Swing Radius | 2420 | mm |
