Pavement hot melt road marking machine / thermoplastic line striping machine SYRM-2

SYNBON Pavement hot melt road marking machineSYRM-2

Description

Operating weight 180kg

Overall size 1400*900*1150mm

Condition:

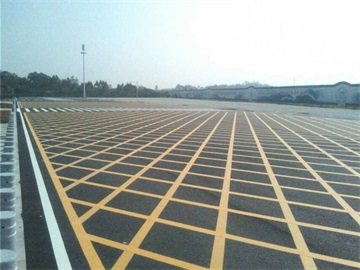

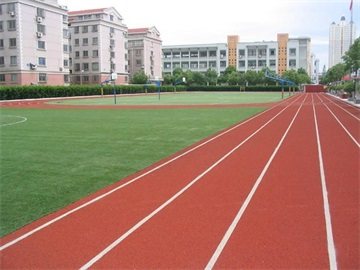

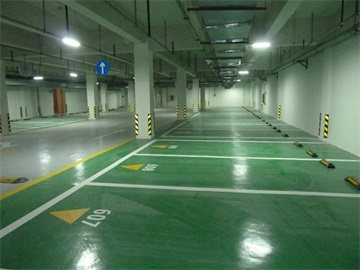

It can be suitable for highway, municipal roads, village or town road, guiding arrows, words, parking lines, factories, etc.


It has advantage of easy using and hard to slip paint out
Get a quote

Features & Details

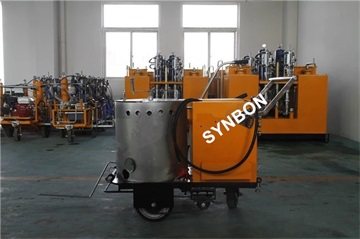

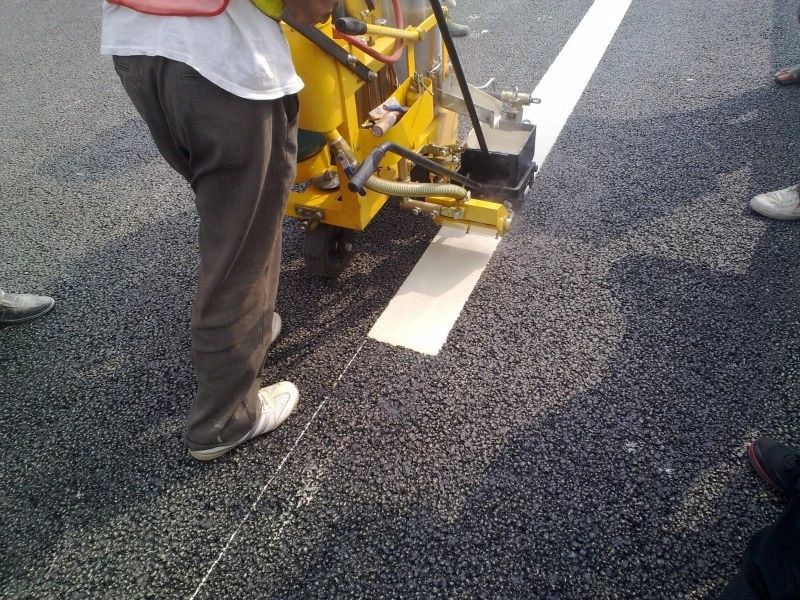

Hand-push thermoplastic road markng machine adopt single-handle marking shoe. It has advantage of easy using and hard to slip paint out. The glass beads spreader complete with speed control buffer devices and can change the width of glass beads according with needing. The positioner upon back wheel make sure the machine go straight. This machine has the advantage of high-quality construction, fast , flexible operation, convenient maintenance and so on. It can be suitable for highway, municipal roads, village or town road, guiding arrows, words, parking lines, factories etc.


Main Features

1.Paint barrels: Stainless steel cylinder, high carbon steel pan (6 mm thick) capacity of 120 kg plug-in manually stirring device.

2. Glass Bead storage box: 10 kg / box

3. Glass beads sow browser: synchronous clutch spread with speed gearshift device

4. Crossed Doo: High-precision ultra-thin material manufacturing, scraper-type structure, the standard configuration of 150 mm

5. Landing knife: Carbide, with eccentric sleeve device can adjust the thickness of the scope marking: 1-2.5 mm

6. Tire: Alloy Wheel Unit, a special heat-resistant rubber, after the last round with positioning devices for the body along a straight line direction

7. Heating method: liquefied petroleum gas

8 Subscript Line Width: 150 mm engineering requirements in accordance with the replacement of different specifications crossed Doo.Pavement hot melt road marking machine / thermoplastic line striping machine



Specifications

SPECIFICATIONS
ModelSYRM-2
Content of Paint container100kg
Line marking wideth100/150/200/300mm or adjust to requires
Line thickness1.0-3.0mm
Speed1.5km/h
Heating Temperature180-230°C
Heating MethodLPG
Suggest gas tank25kg
Dimension1400*900*1150mm
Weight180kg
