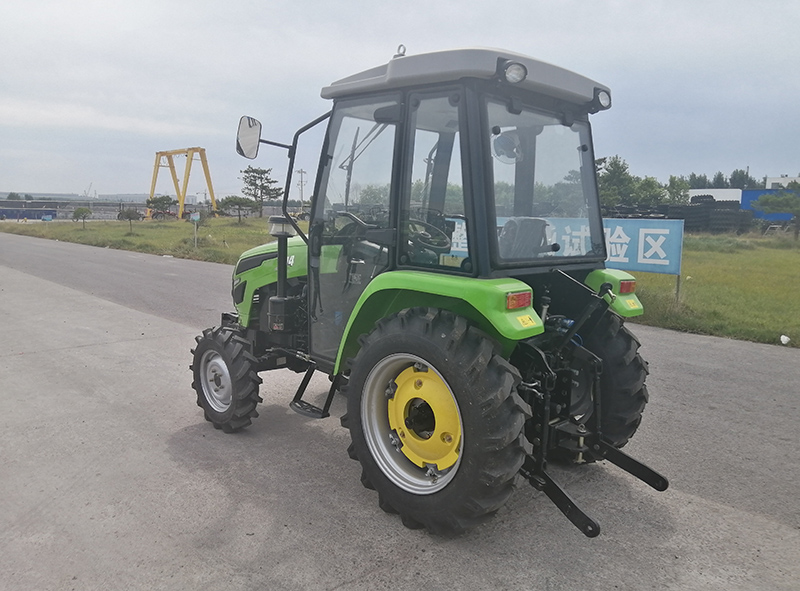

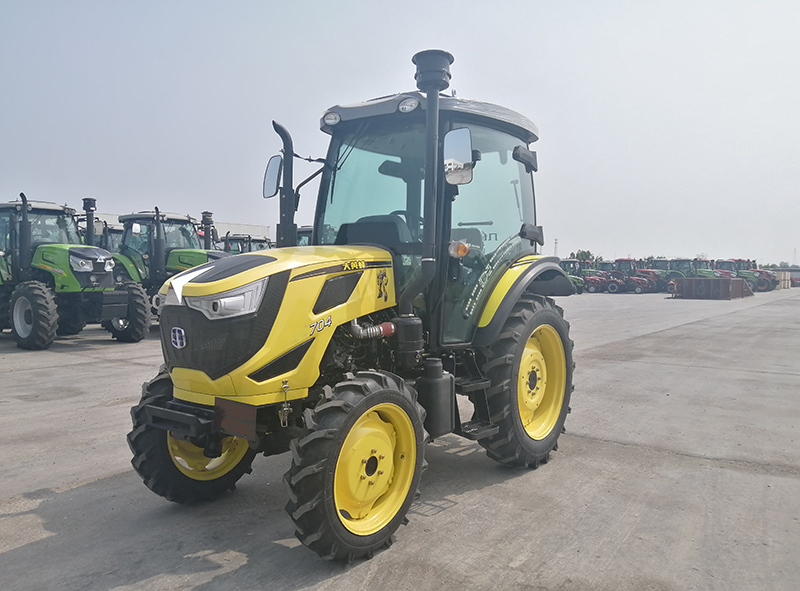

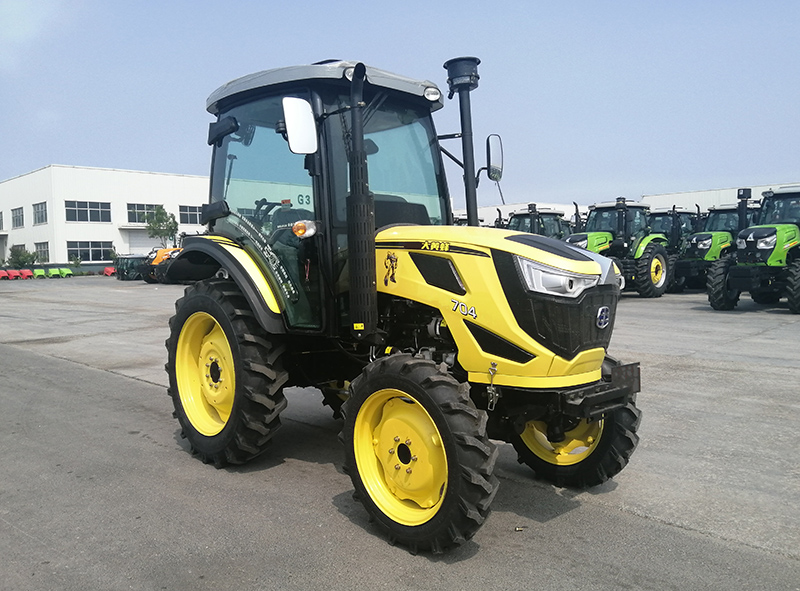

SYNBON 70HP Farm Tractor SY704
Description
Model: SY704
Horsepower: 70HP/51.5KW
Length*Width*Height: 3500*1850*2700mm
Front / Rear Wheel Tire: 8.30-24/11-32
Condition:
generally applicable for the small and medium-sized farmlands and complex operations of individual farmers such as farmland, transportation, construction and etc.
Reinforced chassis, heavy weight, strong vehicle grip,higher efficiency.High performance, simple operation and wide application.
Features & Details
Packaging & Shipping
8unit in 1*20GP container , 12units in 1*40HQ container
Features:
12F+12R gearbox, double-acting clutch, hydraulic steering, two-speed rear PTO (540/720r/min), 1.3 meters or 1.4 wheelbase, strong pressure increase. Side replacement, shock-absorbing seat, maintenance-free battery, tires: 8.30-24/11-32, flat floor, segmented rear power output shaft, streamlined hood.
Specifications
Model | SY704 |
Horsepower(hp) | 70 hp |
Type | 4×4 Wheeled tractor |
Overall dimension（mm） | |
length | 3500 |
width | 1850 |
Height | 2700 |
Tread（mm） | |
Front Wheel | 1450 |
Rear Wheel | 1408 |
wheel base（mm） | 2020 |
Ground Clearance（mm） | 420 |
Structure weight（kgs） | 2660 |
Front Wheel ballast（kg） | 144 |
Rear Wheel ballast(kg) | 360 |
max. wheel track rear | 1.3 m |
max.wheel track front | 1.3 m |
Engine | |
Type | vertical, water cooled, four cylinder,four stork |
Rated rev. (r/min) | 2300 |
Rated power (KW) | 51.5 |
clutch | Dry-friction,double stage |
Transmission system | |
gearbox | 12F+12R shuttle shifts |
central transmission | Gear sector |
Tractor brake | Hydraulic brake,discs |
hydraulic output flow rate (L/min.) | 16L/min |
No. of hydraulic pumps | 1 |
hydraulic output valves | 2 |
lifting capacity | ≥12.5 kN |
min. turning radius | ≤4 M |
Tyre | |
front wheel | 8.3-24 |
Rear wheel | 11.00-32 |
PTO shaft rev. | 540r/min and 760r/min |
