Tractor

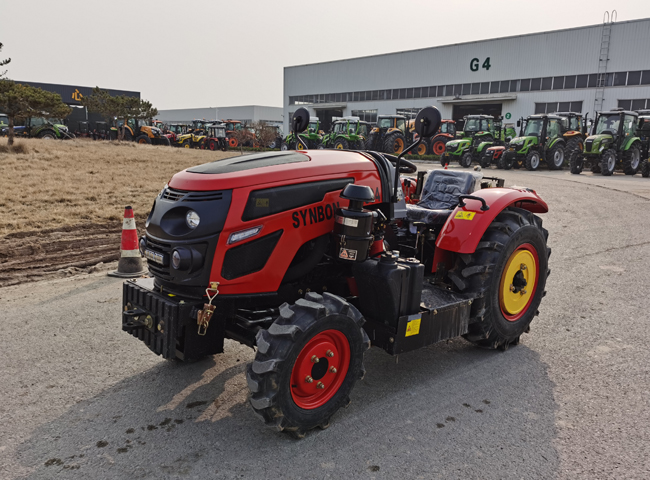

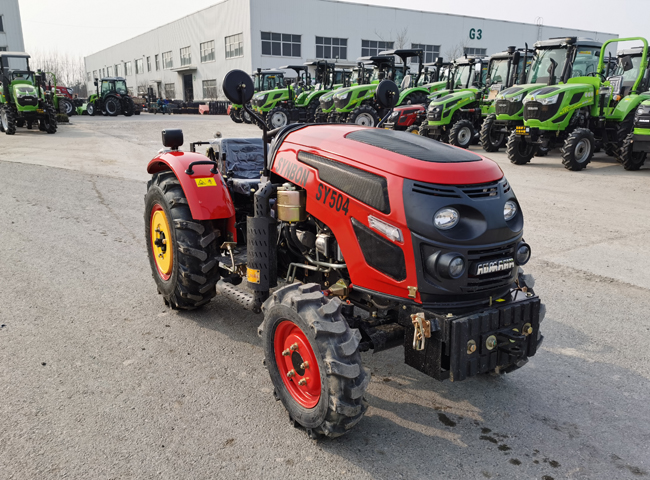

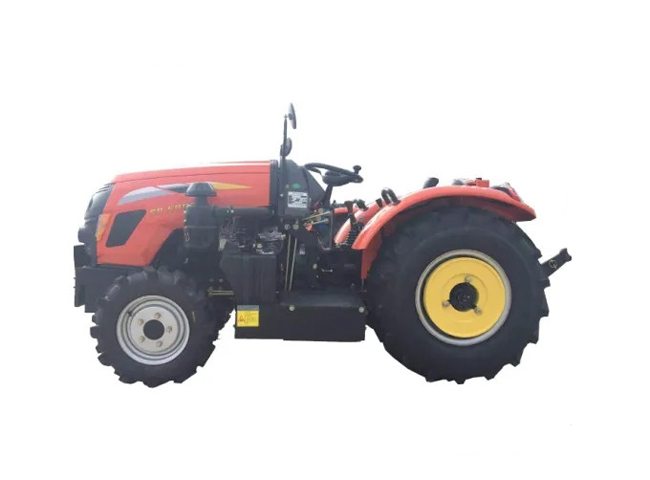

SYNBON Greenhouse Tractor SY504G

Description

Type: 4WD
Rated Power:  50HP / 36.8kw
Size:  2400*1200*1100 mm

Condition:
Farmland, garden, orchard, woods

Farmland Garden Orchard Woods Multifunctional  Agricultural  Tractor

Get a quote

Features & Details

1.good reliability,large torque reserve,low fuel consumption, high economic benefits;
2.high transfer ability,reliable effect,operation more comfortable;
3.Gear box use 8F+2R  gear are reasonable,high working efficiency;
4.Adopt independent power output device,steady transmission,large bearing capacity;
5.Using independent oil hydraulic steering system operation,flexible operation,reliable energy saving;
6.Using disc brakes,large braking torque,good braking effecting;
7.Using forced type lifter, reliable use, convenient maintenance;
8.Final drive adopts planetary reduction structure,compact structure, large reduction ratio;
9.New streamlined appearance, graceful ,fashion;

50HP 4WD four cylinder engine,8F+2R shifts,power steering ,
Single stage clutch,double speed .PTO:540/720 Rpm.
New hood ,Tyre 6.00-12/9.5-16 .Front and rear ballast.

Specifications

Model

SY504G

Type

2WD/4WD

Dimensions of Tractor (mm)

Length

2400

Width

1200

Height

1100 to steering height

Tread (mm)

Front Wheel

950

Rear Wheel

960

 Wheel Base

1200

Ground Clearance

210

Structure mass (kg)

1210

Front Wheel Ballast(kg)

12

Rear Wheel Ballast(kg)

50

Engine

Type

Vertical, water cooled , 4-stroke,4-cylinder

Rated Power(kw)

36.8

Rated Rev.(r/min)

2200

Fuel

 Diesel Oil

Clutch

Dry-friction,single    stage

Transmission     system

Gearbox

(4+1)×2 ,8F+2R  SHIFTS

Central transmission

Gear  sector

Tractor     brake

Dry  brake    discs

Tire

 Front Wheel

6.0-12

Rear Wheel

9.5-16

PTO shaft rev

720 r/min

Get a quote
