Tractor

Tractor SY254

SYNBON sub-compact tractor SY254

Description

Horsepower: 25HP

Length*Width*Height: 3150*1450*2030

Front / Rear Wheel Tire: 6.00-16/9.50-24

Condition:

generally applicable for the small and medium-sized farmlands and complex operations of individual farmers such as farmland, transportation, construction and etc.

Fast speed and high transportation efficiencyIt matches well-known Chinese engines with low vibration, low noise, strong power and large torque reserve.
Get a quote

Features & Details

Description

8 2 files (4 1)*2,

Single acting clutch,

Front wheel 6.0-16,

Rear wheel 9.5-24,

Double hydraulic pump without air brake

Front and rear weight

Four-wheel drive hydraulic steering,

The latest streamlined hood,

Grammer seat,


Features

1. This series of wheel trailers adopts two-cylinder or three-cylinder diesel engine. It runs smoothly. Low noise and low vibration;

2. Adopting a direct-coupled air pump with separate mounting, the air pump has a long service life. The power loss is small and the safety is better:

3. Power output shaft with 540 rpm, 730 rpm. Adapt to different farmland operation requirements

4. Adjustable front and rear track, suitable for agronomic needs in different regions; use increased capacity water tank and large capacity battery, so that it has good heat dissipation performance and starting performance. It is especially suitable for harvesting operations:

5. Among them, SY304/SY354/SY404 type four-wheel drive. It adopts high-flowered tires. The performance of paddy field is better;

6. It adopts full hydraulic steering gear. It has small operating force and good maneuverability.


Benefits

* Fast speed and high transportation efficiency:

* Optional double-acting clutch to ensure no clogging during harvesting;

* With differential lock (rear force device), climb the slope. Climb the bridge and the rear wheels will not slip when working on rainy days.

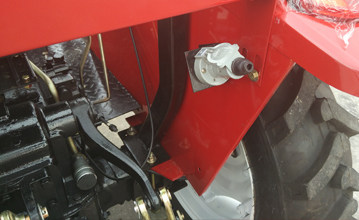

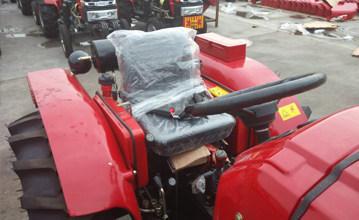

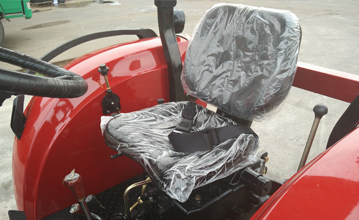

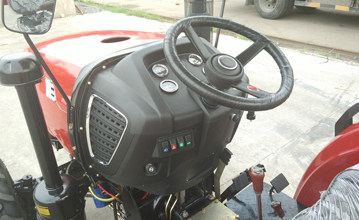

Detail Picture

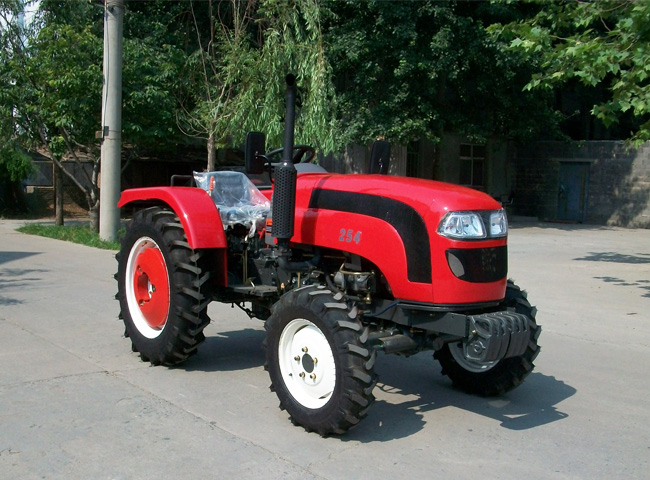

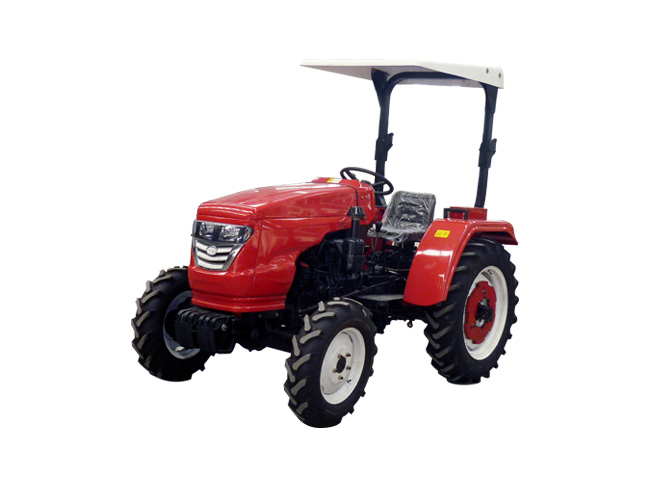

SYNBON Tractor Series


Packaging and Shipping

8unit in 1*20GP container , 16units in 1*40HQ container , Triangle wood and 10mm wire fixed.




FAQ

Q1. What is your production strength?

Over 15 years of tractor production experience, with an annual output of 10,000 units.

Our tractors have passed the ISO 9001 international quality certification system and China 3C quality system. We have obtained EAC and CE certification abroad.


Q2 Which countries have you exported?

Myanmar, Thailand, Kazakhstan, Uzbekistan, Russia, Ukraine, Australia, Brazil, Colombia, Germany, Czech Republic, Sudan, Tunisia, Benin, Congo…


Q3 What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. Weand#39;ll show you the photos of the products and packages before you pay the balance.


Q4. How about your delivery time?

A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some in stock.


Q5. What is your warranty policy?

A: We can supply one year warranty for our machines. We will provide parts as free within warranty. We can provide internet or calling service at any time.

Specifications

Model SY254
Type 4×4 Wheeled Type
Dimensionsof Tractor(mm) Length3150

Width1450

Height2030

TreadFront Wheel960、1220(ususl)


Rear Wheel960、1160(usual)、1200、1300

Wheel Base1715

Min. Ground Base360(the bottom of transfer case)
Min. Usage Mass(kg)1400
Engine ModelLaidong KM385

TypeVertical, water cooled and 4-stroke

Rated Power (kw) 18.4

Rated Rev.(r/min)2300

Fuel Diesel Oil
TireFront Wheel6.00-16

Rear Wheel9.50-24
ClutchDry-friction,single stage or Dry-friction,Two Stage
Steering Hydraulic type
Transmission Box(4 1)×2 Composed
Suspension TypePost Positioned Tri-point Suspension Catalogue Ⅰ
PTOType and Rev. (r/min)Post-position, half-independent,540/720

Spline SizeI35 Rectangle Spline with 6 teeth
