Front / Rear Wheel Tire 6.00-16/9.50-24
generally applicable for the small and medium-sized farmlands and complex operations of individual farmers such as farmland, transportation, construction and etc.
Reinforced chassis, heavy weight, strong vehicle grip,higher efficiency.
Features & Details
8 2 files (4 1)*2,
Single acting clutch,
Front wheel 6.0-16,
Rear wheel 9.5-24,
Double hydraulic pump,
Without air brake,
Front and rear weight
Streamlined metal hood, stylish streamlined design, beautiful appearance
Optional fully sealed closed cab for more ergonomics
Double cylinder strong pressure riser with height limit, the depth adjustment method adopts position adjustment and floating control operation, and the adaptability is better.
The hydraulic system and the rear axle are itself supplied with oil, and the failure rate is low.
Full hydraulic steering system for more reliable handling
Reinforced chassis, heavy weight, strong vehicle grip, large specific resistance soil operation, higher efficiency.
The complete machine is equipped with a variety of international standard interfaces which can match various machines and tools.Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, hay mower, rake, Baler,Box Blade and rotary cultivator
SYNBON Tractor Series
Packaging and Shipping

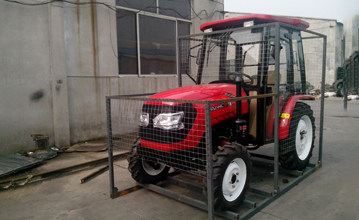

4unit in 1*20GP container , 8units in 1*40HQ container , Triangle wood and 10mm wire fixed.
Q1. What is your production strength?
Over 15 years of tractor production experience, with an annual output of 10,000 units.
Our tractors have passed the ISO 9001 international quality certification system and China 3C quality system. We have obtained EAC and CE certification abroad.
Q2 Which countries have you exported?
Myanmar, Thailand, Kazakhstan, Uzbekistan, Russia, Ukraine, Australia, Brazil, Colombia, Germany, Czech Republic, Sudan, Tunisia, Benin, Congo…
Q3 What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. Weand#39;ll show you the photos of the products and packages before you pay the balance.
Q4. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some in stock.
Q5. What is your warranty policy?
A: We can supply one year warranty for our machines. We will provide parts as free within warranty. We can provide internet or calling service at any time.
|Type||4×4 Wheeled Type|
|Min. Ground Base||360（the bottom of front axle）|
|Min. Usage Mass（kg）||1510|
|Type||Vertical, water cooled and 4-stroke|
|Clutch||Dry-friction，single stage or Dry-friction，Two Stage|
|Transmission Box||two shafts, （4 1）×2 composed|
|Suspension Type||Post Positioned Tri-point Suspension Catalogue Ⅰ|
|PTO||Type and Rev.（r/min）||Post-position, non-independent,720/850|
|Spline Size||I35 Rectangle Spline with 6 teeth|
