Tractor

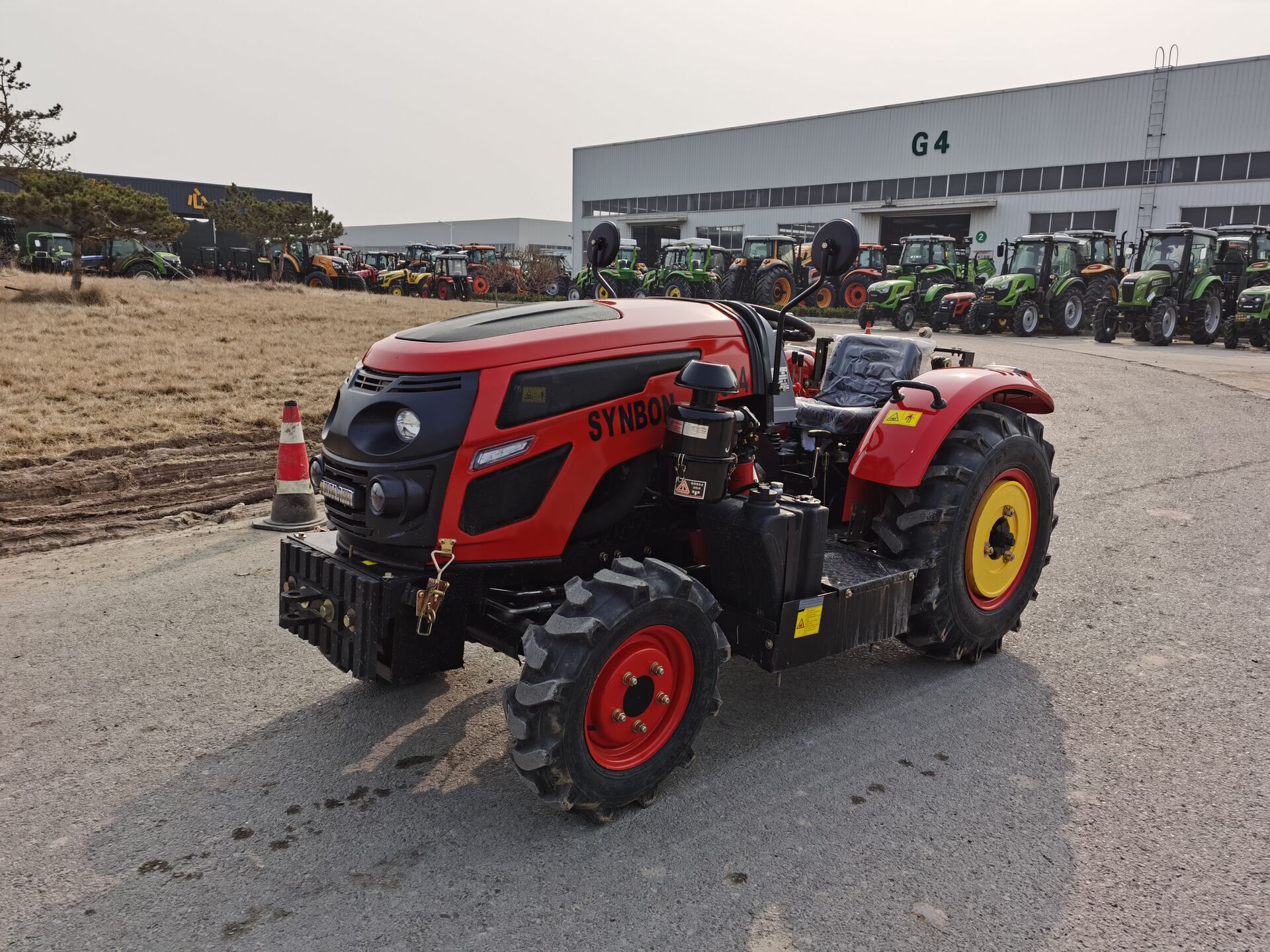

SYNBON Greenhouse Tractor SY504G

Hot sale 4 wheel drive diesel tractor agricultural machinery greenhouse tractor

Description

Type :4WD

Rated Power:  50HP / 36.8kw

Size:  2400*1200*1100 mm



Condition:



Farmland, garden, orchard, woods



20180910152728188.png@!w800Farmland Garden Orchard Woods Multifunctional  Agricultural  Tractor
Get a quote

Features & Details

Benefits and Features

1.good reliability,large torque reserve,low fuel consumption, high economic benefits;



    2.high transfer ability,reliable effect,operation more comfortable;



    3.Gear box use 8F 2R  gear are reasonable,high working efficiency;



4.Adopt independent power output device,steady transmission,large bearing capacity;



    5.Using independent oil hydraulic steering system operation,flexible operation,reliable energy saving;



    6.Using disc brakes,large braking torque,good braking effecting;



    7.Using forced type lifter, reliable use, convenient maintenance;



    8.Final drive adopts planetary reduction structure,compact structure, large reduction ratio;



9.New streamlined appearance, graceful ,fashion;

50HP 4WD four cylinder engine,8F 2R shifts,power steering ,

Single stage clutch,double speed .PTO:540/720 Rpm.

New hood ,Tyre 6.00-12/9.5-16 .Front and rear ballast.

504 G (3).jpg

504 G (17).jpg

504 G (18).jpg

504 G (19).jpg

504 G (20).jpg

504G  (13).jpg

504G  (18).jpg



Specifications


ModelSY504G
Type2WD/4WD
Dimensions of Tractor (mm)
Length2400
Width1200
Height1100 to steering height
Tread (mm)
Front Wheel950
Rear Wheel960
 Wheel Base1200
Ground Clearance210
Structure mass (kg)1210
Front Wheel Ballast(kg)12
Rear Wheel Ballast(kg)50

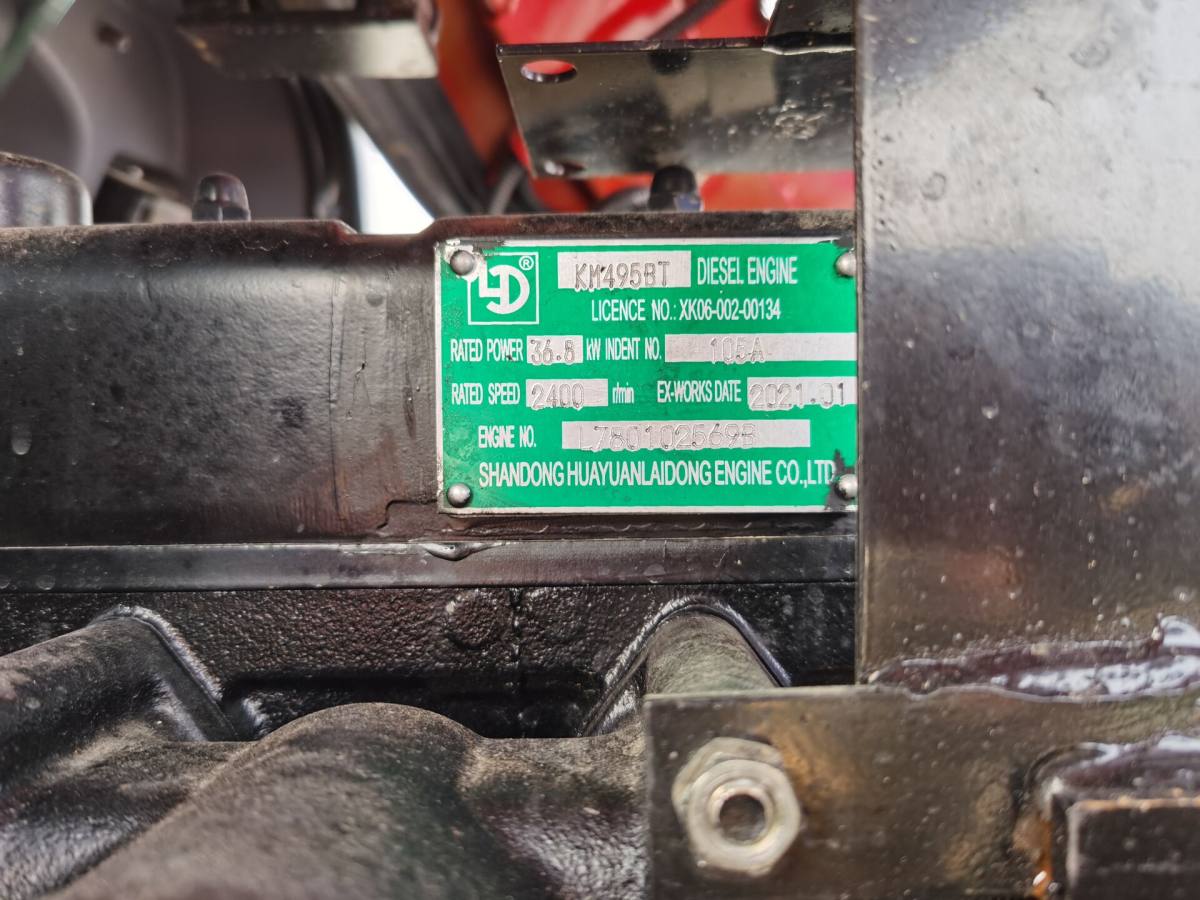

Engine
TypeVertical, water cooled , 4-stroke,4-cylinder
Rated Power(kw)36.8
Rated Rev.(r/min)2200
Fuel Diesel Oil
ClutchDry-friction,single stage
Transmission  system
Gearbox(4 1)×2 ,8F 2R  SHIFTS
Central transmission Gear  sector
Tractor  brakeDry  brake discs
Tire
 Front Wheel6.0-12
Rear Wheel9.5-16
PTO shaft rev720 r/min
