SELF LOADING CONCRETE MIXER

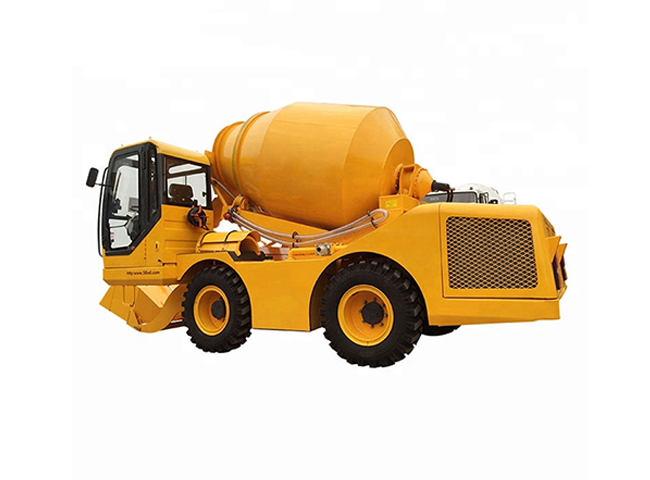

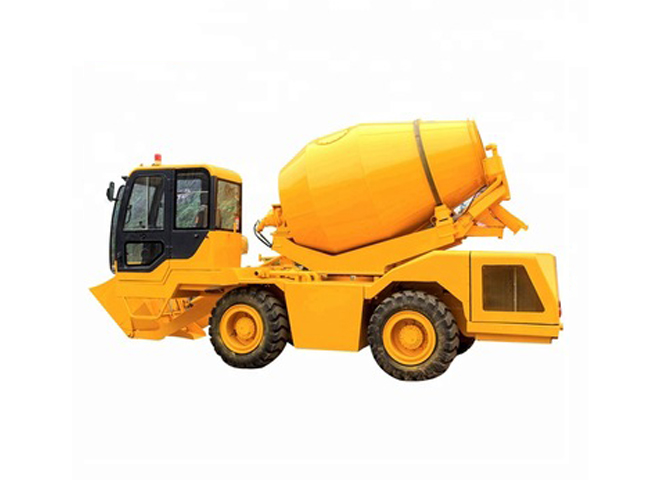

SYNBON SYM2600 Self Loading Concrete Mixer

In the self-loading mixer class with 2.6 m3 yield, SYM2600 is the most compact and price-worth model

Description

Type: self loading

Concrete Yield: 2.6m³

Steering: four-wheel Steering(4WS)

Condition:

Equipped with a four-wheel steering drive system, the vehicle can be driven in harsh construction environments and complex roads. The lightweight and flexible body is ideal for construction in crowded urban areas, mountains and fields.


SYM2600 is the perfect solution for rental purposes and for those who wish to achieve their ROI quickly and always maintaining the renowned quality of concrete delivered by the self-loading concrete mixers from SYNBON.
Get a quote

Features & Details

Description

SYM2600 concrete automatic feeding mixer is our self-developed product. It is equipped with hydraulic electronic scale. It can accurately measure the stone and sand when loading, and automatically quantify the water, making the concrete ratio more standard. Transportation and mixing are integrated, and automatic feeding, metering, stirring and unloading can be carried out without additional power supply.

Extremely compact in size, with outstanding handling and stability features resulting from its very low centre of gravity, this version is also characterised by a wide cabin windscreen that improves visibility during casting operations. Easy to use, compact and reliable, SYM2600 is the perfect solution for rental purposes

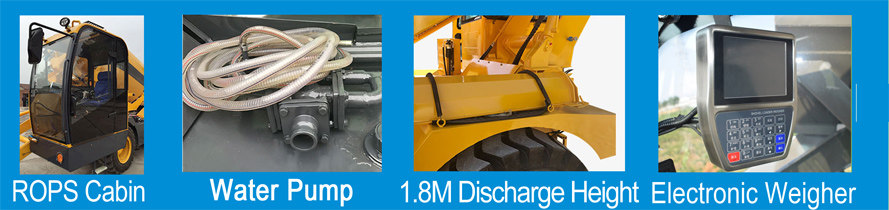

Detail photo


Features

**cut costs

Save one loader, one mixer, one tanker, and labor costs for 4-6 workers.

**high working efficiency

Easy to load, accurate measurement, even mixing anytime and anywhere, full-wheel four-wheel drive, suitable for any working condition and road conditions, saving manpower, high efficiency.

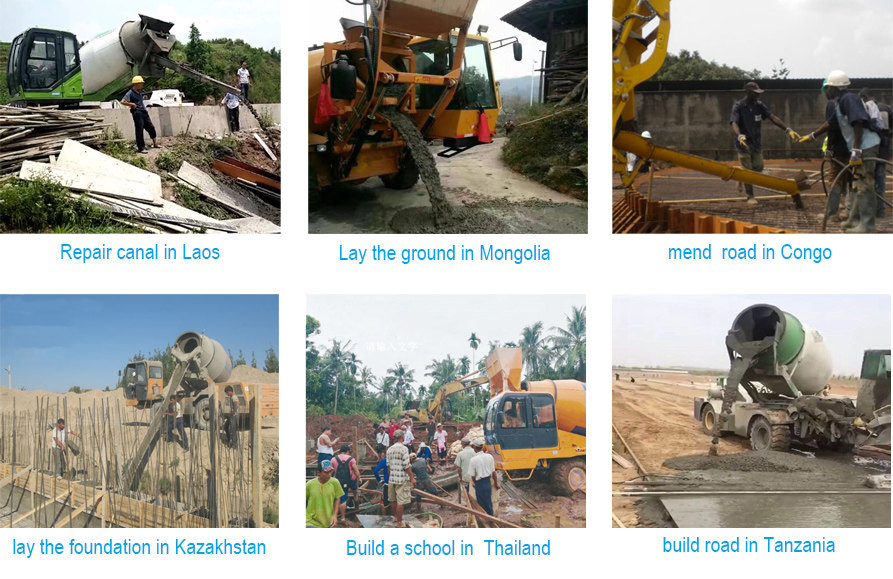

Construction Cases

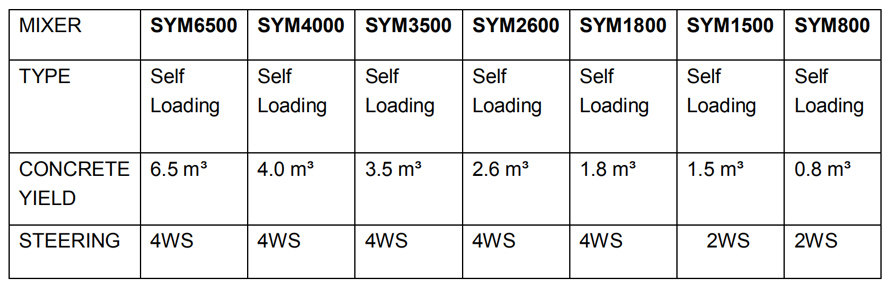

Products Series


Operating instruction

★1 Before operation, ensure that the working systems of the mixer are working properly and are safe and free from the surrounding environment.

*2 The driver is dressed neatly, enters the cab in the correct way, adjusts the seat position, opens and drives the mixer, the cab is fully equipped, equipped with air conditioning system, radio, and joystick designed according to ergonomics, operation Simple, lightweight and flexible.

★3 After the water tank is flooded, the driver controls the bucket with the joystick, loads the bucket sand, and then pours the cement into the bucket. The bucket insert can easily cut the cement outer packaging to avoid waste of raw materials. Then, using the fluidity of the sand, the cement is brought into the drum and then loaded into the aggregate. The electronic weighing system can accurately control the ratio of the ingredients, aggregate, sand, and cement into the mixing drum, and automatically pressurize and mix with water through the water tank. Make it more evenly stirred.

★4 Driving the mixer to the construction site, the SYNBON mixer can prevent rollovers from falling, suitable for any site operation, providing safe and reliable protection for the actual situation, and equipped with a four-wheel steering drive system to enable the vehicle to be in a harsh construction environment. Driving on complex roads, the efficiency diversion system can ensure that the drum is always in a state of agitation during transportation, ensuring that sand and gravel do not settle and ensure the quality of the concrete.

★5 Using the joystick to pass the 290° rotary mixing drum, the concrete can be dumped at a height of 120 cm to 160 cm. During the unloading process, the mixer can move back and forth according to the actual situation.

★6 After the end, use the automatic flushing function of the mixer to thoroughly rinse the mixing drum. Use the automatic flushing function of the mixer to thoroughly rinse the mixing tank to ensure no residue in the tank.

★7 Regularly use the automatic lubrication function to carry out daily maintenance of the vehicle. The SYNBON mixer is dedicated to providing customers with the best solution for mixing and pouring concrete. The lightweight and flexible body is ideal for construction in crowded urban areas, mountains and fields.

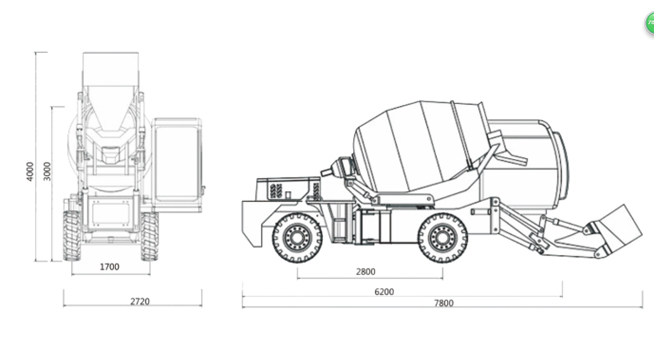

Specifications

SYM2600 Self-Loading-Concrete-Mixer



SYM2600 Self-Loading-Concrete-Mixer
MIXING UNIT

Double-cone drum with double-spiral mixing screws,

mixing blade and convex bottom.

Geometrical Drum Volume:3.6m³
Concrete Output: 2.6 m³/ Batch, 10.4m³/ hour
Drum Rotation Speed: 13 rpm.

Drum is rotated by means of dual gear pump and hydraulic

piston motor in closed circuit. Mixing and discharging speed

is independent from r.p.m. Of diesel engine.

The Discharging process is achieved by reversing

operation of drum. The mixing unit is slewed hydraulically

through 270° for high discharge over 1.8M on the

four sides of the vehicle.

ENGINE

YUCHAI, YCD4T22T-105, 4-cylinder,

Turbo-charged and Water Cooled.

Rated Power:78 KW (106 HP) @2400 rpm
Max. Torque:330 N.m @2000 rpm
TRANSMISSION

Hydrostatic "automotive" transmission with gear pump

and hydraulic motor with hydraulic control, and

reverse gear control on the steering wheel.

4 wheel drive and 2 wheel steering. (4x4x2)

AXLES

Large-size Hub reduction axle with oil bath

disc brakes and planetary reducers.

SPEED
Speed4 F 4R Shift (High Low Speed)
Ist 0- 3.0 Km/h 0 – 3.0 Km/h
IInd 0-7.2 Km/h 0 – 3.0 Km/h
IIIrd 0-10.0 Km/h 0 – 10.0 Km/h
Ivth 0- 25 Km/h 0 – 10.0 Km/h
CABIN

ROPandFOPS Type Closed front cab is suited

on the side of loading shovel

Electric Fan, tilting front window and anatomic seat

with flexibleA/C is optional upon request

HYDRAULIC SYSTEM
Dual Gear Pump for Drum Mixing andArm LiftingFlow Rate: 80/40 mL/r
Walking Gear Pump for DrivingFlow Rate: 32 mL/r
Hydraulic Piston Motor Flow Rate: 125 mL/r
JOYMIX

The functions of drum mixing and arm lifting

are controlled by one hydraulic Joystick.

The functions of revolving and lifting of drum

are controlled by another hydraulic Joystick

WEIGHING

Chinese Brand Electronic weighing system is optional

upon request. The “Load cells” are acting on the

drum, and technical data are displayed

on the shovel loader weigher inside the cabin.

LOADING SHOVEL

Loading Shovel: is fitted with teeth in front and

completed with hydraulic opening gate. The lifting

arms are controlled by double-acting hydraulic cylinders.

Volumetric capacity600 L
Number of loaderfuls per load:Around 5
CHUTE

Chute: could be mechanically tilted and slewed at 90°by

means of one adjustable handle. 2 PCS of discharging

chute extensions are provided as standard equipment.

WATER SYSTEM

Self-priming hydraulic water

pump with quick-suction.

Max. capacity250 L/min

Two connected steel water tanks are

positioned opposite each other

total capacity 2×250 L
GRADIENT
Gradient: Fully loaded 40%
BRAKES

Air cap oil service brake. Internal oil-bath disc service

acting on the 4 wheels. Negative hydraulic parking

brake, with internal wheel hub discs on the front axle

TYRES
TypesOff road industrial type
Model16/70-20, PR14
STEERING
SteeringHydrostatic front wheels steering.
Mini. Turning Radius:5300 mm
ELECTRIC SYSTEM:
Alternator24V—1500 Wa
Battery2×12V--80AH

for electric starter and road lighting.

Safety battery cut-off.

SERVICE REFILL CAPACITIES
Fuel Tank:75 L
Total hydraulic system capacity75 L
Engine Oil16 L
CHASSIS
Chassis: Articulated chassis for off-road operation
WEIGHT
Operating Weight 6500 kg
Load-carrying Capacity6200 kg
Max. Gross Weight12700 kg
