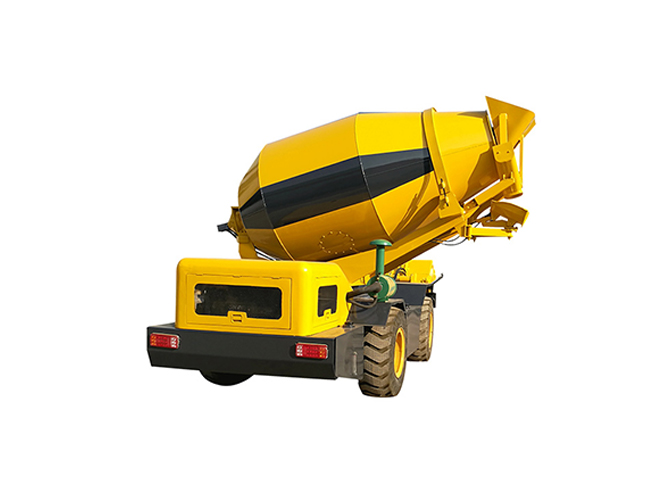

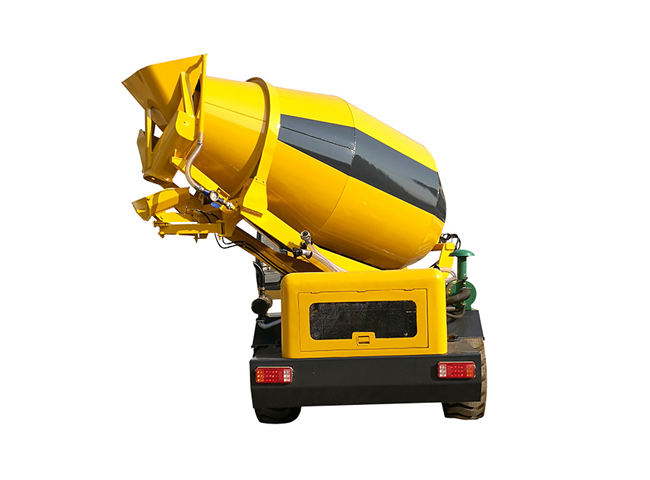

SYNBON SYM4000 Self Loading Concrete Mixer
Type: self loading
Concrete Yield: 4m³
Steering: four-wheel Steering(4WS)
Condition: OFF ROAD MOBILE BATCHING PLANT .
Equipped with a four-wheel steering drive system, the vehicle can be driven in harsh construction environments and complex roads. The lightweight and flexible body is ideal for construction in crowded urban areas, mountains and fields.
Features & Details
SYM4000 concrete automatic feeding mixer is our self-developed product. It is equipped with hydraulic electronic scale. It can accurately measure the stone and sand when loading, and automatically quantify the water, making the concrete ratio more standard. Transportation and mixing are integrated, and automatic feeding, metering, stirring and unloading can be carried out without additional power supply.
The product has a capacity of 4m3 and can be stirred with 16 m³ of concrete per hour to achieve a daily productivity of 120-130 m³ concrete. Four-wheel steering axle, with a minimum turning radius of 4 meters, electronic shifting, 290° rotation of the tank, electronic weighing, automatic grease filling for the whole car, driving speed of 30km/h, reasonable design, compact structure and flexible operation. Easy to maintain. The best price and productivity are the unique features of the SYM4000.
Save one loader, one mixer, one tanker, and labor costs for 4-6 workers.
**high working efficiency

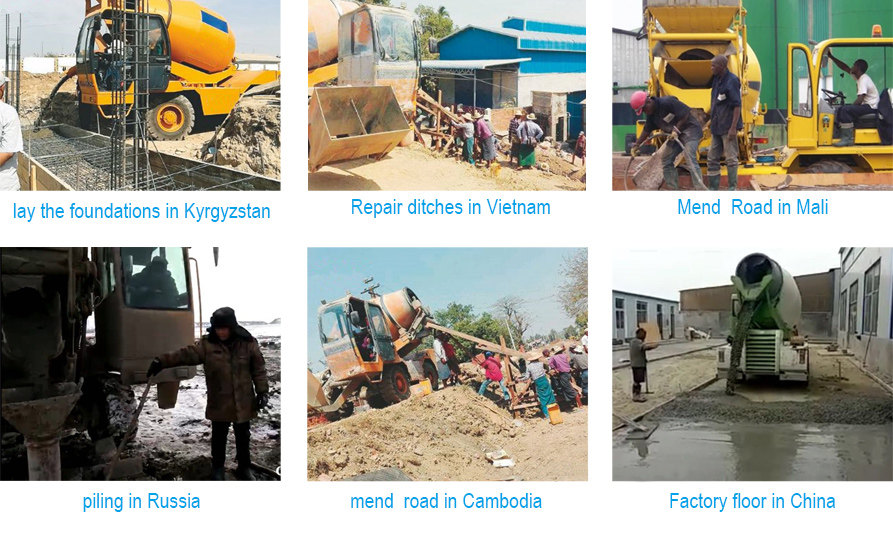

Easy to load, accurate measurement, even mixing anytime and anywhere, full-wheel four-wheel drive, suitable for any working condition and road conditions, saving manpower, high efficiency, can produce 120-130 m³ of concrete per day.
★1 Before operation, ensure that the working systems of the mixer are working properly and are safe and free from the surrounding environment.
*2 The driver is dressed neatly, enters the cab in the correct way, adjusts the seat position, opens and drives the mixer, the cab is fully equipped, equipped with air conditioning system, radio, and joystick designed according to ergonomics, operation Simple, lightweight and flexible.
★3 After the water tank is flooded, the driver controls the bucket with the joystick, loads the bucket sand, and then pours the cement into the bucket. The bucket insert can easily cut the cement outer packaging to avoid waste of raw materials. Then, using the fluidity of the sand, the cement is brought into the drum and then loaded into the aggregate. The electronic weighing system can accurately control the ratio of the ingredients, aggregate, sand, and cement into the mixing drum, and automatically pressurize and mix with water through the water tank. Make it more evenly stirred.
★4 Driving the mixer to the construction site, the SYNBON mixer can prevent rollovers from falling, suitable for any site operation, providing safe and reliable protection for the actual situation, and equipped with a four-wheel steering drive system to enable the vehicle to be in a harsh construction environment. Driving on complex roads, the efficiency diversion system can ensure that the drum is always in a state of agitation during transportation, ensuring that sand and gravel do not settle and ensure the quality of the concrete.

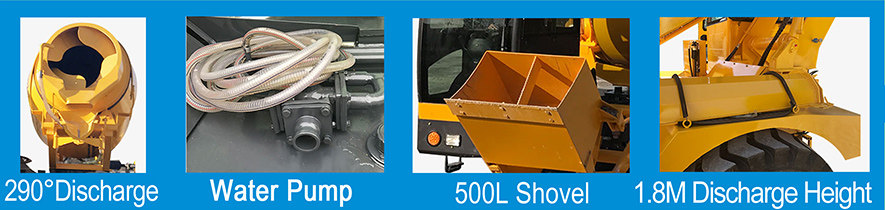

★5 Using the joystick to pass the 290° rotary mixing drum, the concrete can be dumped at a height of 120 cm to 160 cm. During the unloading process, the mixer can move back and forth according to the actual situation.
★6 After the end, use the automatic flushing function of the mixer to thoroughly rinse the mixing drum. Use the automatic flushing function of the mixer to thoroughly rinse the mixing tank to ensure no residue in the tank.
★7 Regularly use the automatic lubrication function to carry out daily maintenance of the vehicle. The SYNBON mixer is dedicated to providing customers with the best solution for mixing and pouring concrete. The lightweight and flexible body is ideal for construction in crowded urban areas, mountains and fields.
Double-cone drum with double-spiral mixing
screws, mixing blade and convex bottom.
|Geometrical Drum Volume:||6.2m³|
|Concrete Output:||4m³/ Batch, 16m³/ hour|
|Drum Rotation Speed:||17 rpm.|
Drum is rotated by means of dual gear pump and
hydraulic piston motor in closed circuit. Mixing and
discharging speed is independent from r.p.m. Of diesel engine.
The Discharging process is achieved by reversing
operation of drum. The mixing unit is slewed hydraulically
through 290° for high discharge over 2.0M on the four
sides of the vehicle.
|YUCHAI, YCD4J22G 4-cylinder, Turbo-charged and Water Cooled.|
|Rated Power:||85 KW (116 HP) @2400 rpm|
|Max. Torque:||390 N.m @2000 rpm|
|Engine optional||CUMMINS Engine is optional on request|
Hydrostatic "automotive" transmission with gear pump and
hydraulic motor with hydraulic control, and reverse gear
control on the steering wheel. 4 wheel drive and 4 wheel steering.
|10 Ton payload reduction axle with oil bath disc brakes and planetary reducers.|
|Speed||4 F 4R Shift|
|Ist 0- 3.7 Km/h||0 – 3.7 Km/h|
|IInd 0-9.5 Km/h||0 – 3.7 Km/h|
|IIIrd 0-18.0 Km/h||0 – 12.8 Km/h|
|Ivth 0- 32 Km/h||0 – 12.8 Km/h|
|Closed front cab is suited on side of loading shovel|
Air conditioner, tilting front window and anatomic
seat with flexiblesuspension are available.
|Dual Gear Pump for Drum Mixing andArm Lifting||Flow Rate: 80/40 mL/r|
|Walking Gear Pump for Driving||Flow Rate: 25 mL/r|
|Hydraulic Piston Motor||Flow Rate: 56 cm³/rev|
The functions of drum mixing and arm lifting
are controlled by one hydraulic Joystick.
The functions of drum revolving and lifting
are controlled by another hydraulic Joystick
Chinese Brand Electronic weighing system is as standard equipment.
The “Load cells” are acting on the drum, and technical data
are displayed on the shovel loader weigher inside the cabin.
Loading Shovel: is fitted with teeth in front and completed
with hydraulic opening gate. The lifting arms are
controlled by double-acting hydraulic cylinders.
|Volumetric capacity||600 L|
|Number of loaderfuls per load:||Around 7|
Chute: could be mechanically tilted and slewed at 90°by
means of one adjustable handle. 2 PCS of discharging
chute extensions are provided as standard equipment.
|Self-priming hydraulic water pump with quick-suction.|
|Max. capacity||550 L/min|
Two connected steel water tanks are
positioned opposite each other
|total capacity||2×330 L|
|Gradient: Fully loaded 40%|
Air cap oil service brake. Internal oil-bath disc service
acting on the 4 wheels. Negative hydraulic parking
brake, with internal wheel hub discs on the front axle
|Types||Off road industrial type|
|Steering||Hydrostatic front wheels steering.|
|Mini. Turning Radius:||4000 mm|
for electric starter and road lighting.
Safety battery cut-off.
|SERVICE REFILL CAPACITIES|
|Fuel Tank:||230 L|
|Total hydraulic system capacity||170 L|
|Engine Oil||16 L|
|Chassis: Integrated rigid chassis for off-road operation.|
|Operating Weight||9200 kg|
|Load-carrying Capacity||9600 kg|
|Max. Gross Weight||18800 kg|
