Electric Forklift

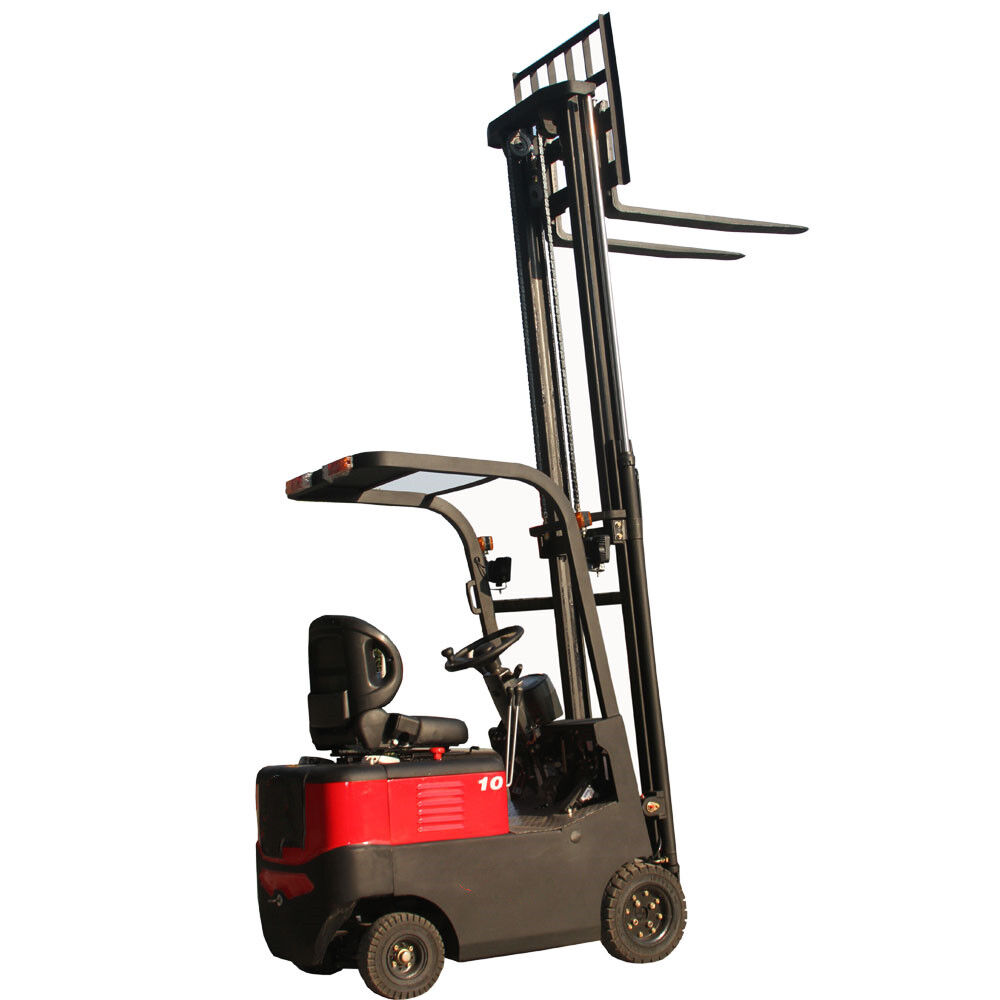

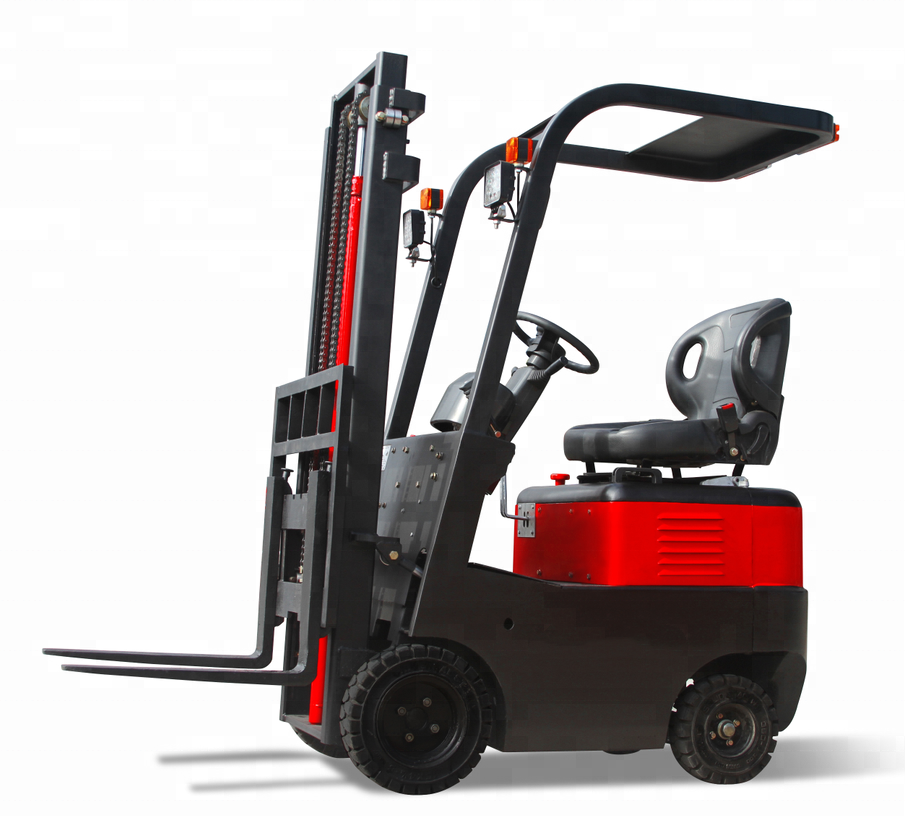

4 wheels 1ton electric forklift truck with AC Motor

4 wheels 1ton electric forklift truck with AC Motor

Description

Operating weight  1000kg

Power type::   Lead-acid battery

Max. Lifting Height    3000mm

Overall size     2560*800*2050mm


Condition:

Outstanding environmental protection function

Low consumption cost

Handy

Low maintenance cost

Expansion of use


20180910152728188.png@!w800Optional configuration is 3-stage mastSide shifterFull-free lift Mast
Get a quote

Features & Details

Packaging and Shipping

6 units in 20GP Container, 12 units in 40HC container


Benefits and Features

• OPS System

• Comfortable Operator Space

• Side-way Battery Change System

• Lower Energy Consumption and Energy Regeneration Function

• Easy-to-read operator display

• Front Dual AC Motor Traction System

• World Class Gear Box System

• Automatic Maintenance Alarm

* Zero-Emission, Zero-Pollution, Low-Level Vibration, Low-Level Vibration, Low Operation Cost, High Efficiency, High Quality, these are the reasons for you to choose SYNBON Electric Forklift.



SYF10D (1).jpg

SYF10D (1).png

SYF10D (2).jpg

SYF10D (3).jpg



Specifications


ModelSYF10D
Power typeBattery
Rated load (KG)800-1000
Load center distance(mm)400
Driving typeSeat
  With fork              L12560
     Without fork       L21640
Whole Width  800
 Height no lifting frame       H12050
   Top frame height                H21900
 Max Height     working         H33820
 Distance from seat to top light   L3970
Wheel  base      1020
 Front overhang   312
  Back overhang     250
  Front wheel tread  700
Back wheel tread  668
            Min Floor clearance        90
   Max lifting height        3000
   Free lifting height     80
      Fork  changing      703/190
     Min Turning radius1800
               Min driiving width     3412
Frame angle   (°)6°/12°
Max lifting speed without goods250
Max lifting speed with full  goods220
Max speed without goods(Km/h)12
Max speed with full goods(Km/h)11
 Max climbing angle(%)≤10
 Whole weight (KG)1600
Driving Wheel2x/2
Tyre modelSolid tyre
Front Tyre15x4 1/2-8
Rear Tyre3.50-5
Hand BrakeHydraulic Pedal
Brake  typeM-Hand
Battery Volt/ capacity(V/Ah)12Vx4/160
Driving motor power (KW)3.0AC
pump power3.0DC
