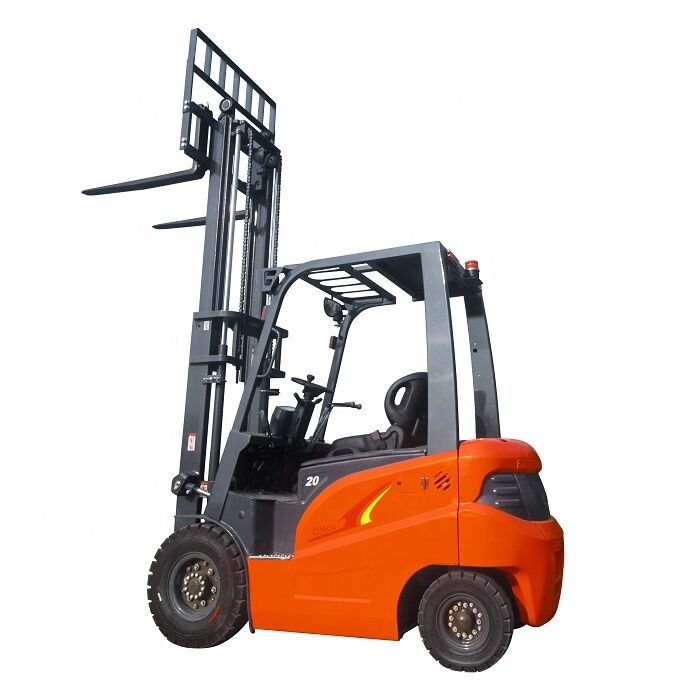

SYNBON Electrical Forklift SYF25D
4 wheels 1ton electric forklift truck with AC Motor
Description
Operating weight 2500kg
Optional configuration is3-stage mastSide shifterFull-free lift Mast
Features & Details
Packaging and Shipping
4 units in 20GP Container, 8 units in 40HC container
Benefits and Features
• OPS System
• Comfortable Operator Space
• Side-way Battery Change System
• Lower Energy Consumption and Energy Regeneration Function
• Easy-to-read operator display
• Front Dual AC Motor Traction System
• World Class Gear Box System
• Automatic Maintenance Alarm
* Zero-Emission, Zer
o-Pollution, Low-Level Vibration, Low-Level Vibration, Low Operation Cost, High Efficiency, High Quality, these are the reasons for you to choose SYNBON Electric Forklift.
Specifications
| Model | SYF25D |
| Power type | Battery |
| Rated load （KG） | 2500 |
| Load center distance(mm) | 500 |
| Driving type | Seat |
| With fork L1 | 3380 |
| Without fork L2 | 2310 |
| Whole Width | 1150 |
| Height no lifting frame H1 | 2000 |
| Top frame height H2 | 2145 |
| Max Height working H3 | 3995 |
| Distance from seat to top light L3 | 1020 |
| Wheel base | 1515 |
| Front overhang | 444 |
| Back overhang | 400 |
| Front wheel tread | 970 |
| Back wheel tread | 950 |
| Min Floor clearance | 135 |
| Max lifting height | 3000 |
| Free lifting height | 170 |
| Fork changing | 1024/200 |
| Min Turning radius | 2050 |
| Min driiving width | 3794 |
| Frame angle （°） | 6°/12° |
| Max lifting speed without goods | 380 |
| Max lifting speed with full goods | 280 |
| Max speed without goods(Km/h) | 15 |
| Max speed with full goods(Km/h) | 14 |
| Max climbing angle(％) | ≤15 |
| Whole weight (KG) | 4200 |
| Driving Wheel | 2x/2 |
| Tyre model | Solid tyre |
| Front Tyre | 7.00-12 |
| Rear Tyre | 18x7-8 |
| Hand Brake | Hydraulic Pedal |
| Brake type | M-Hand |
| Battery Volt/ capacity(V/Ah) | 48/500 |
| Driving motor power (KW) | 11.0AC |
| pump power | 12.0AC |
