DUMPER

SYNBON Dumper SYD30

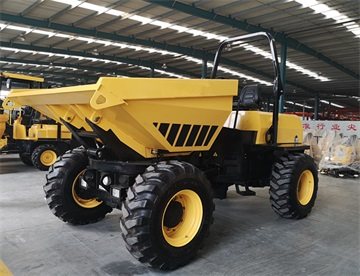

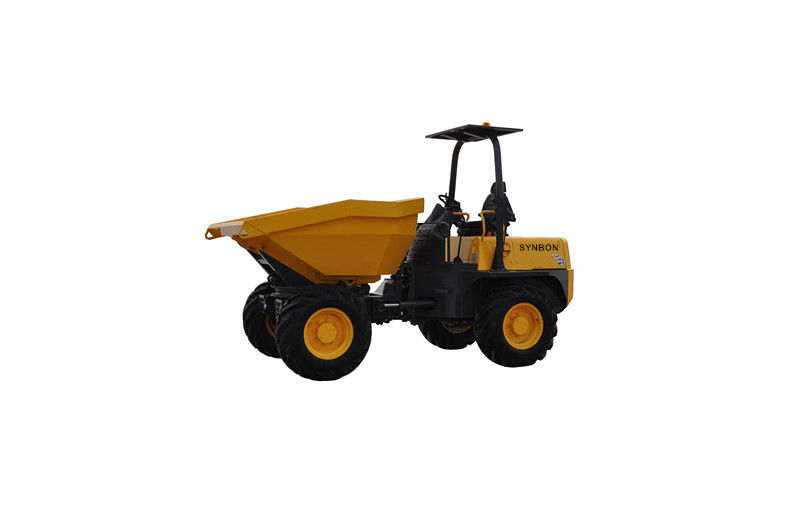

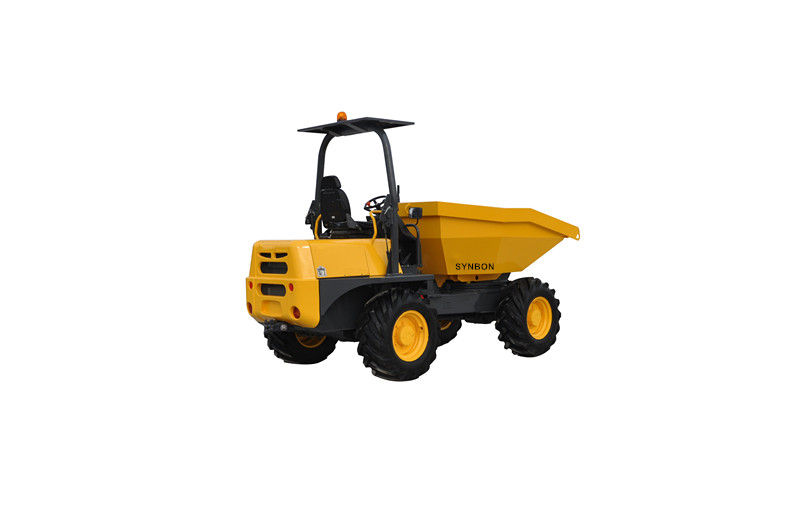

3ton SYNBON Hydraulic Dumper SYD30

Description

Operating weight 2800KG

Power 40KW

Overall size 4100*1858*2200MM

Condition:

widely usea in constrction engineering municipal engineering,urban and rural landscape,road traffic ,the station terminals,irrigation and water conservancy and various types of coal mines,battlefields,cement plant,construction sites,etc.especially suitable for narrow site loading and short distance running sand,gravel,coal,slag,loam.garbage and etc.


Full Hydraolic Easy opreation,small turning radius
Get a quote

Features & Details

1. Transport vehicles can operate freely in mud roads

2. C-unloading design, motor walking, greatly extended the use ability.

3. The specific size can be customized according to the requirements

4. Strong carrying capacity, large climbing ability, simple operation and easy maintenance.

5. Unique design with humanization.

6. Multi-functional machine with a variety of optional accessonries.

7. widely usea in constrction engineering municipal engineering,urban and rural landscape,road traffic ,the station terminals,irrigation and water conservancy and various types of coal mines,battlefields,cement plant,construction sites,etc.especially suitable for narrow site loading and short distance running sand,gravel,coal,slag,loam.garbage and etc.



Specifications

ModelSYD30
Rated load 3000kg
Operating weight 2800kg

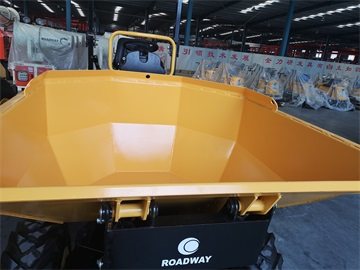

Bucket capacity1.5m3
Grade ability 30º
Min turning radius 4375mm
wheel tread/wheel base 2150mm
Overall dimension 4150*1950*1850mm(without cab)
Engine
Model CHANGCHAIZN 490
Type in linedirect injectionwater cooler4 cylinders
Rated power 33kw
Max torque 2200r/min
Transmission system
Gearbox Gear transmission
Clutch dry friction
Nos of shifts move forward 4 back 4
Max speed 24km/hr
Rear and front axle 4×4,front axle fixed, rear axle swing( /-11°)
Steering
Steering Type hydraulic steering
Steering angle 35 degrees on both sides

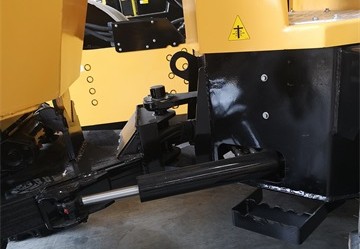

Hydraulic system
Pressure 16MPA
Brake type Drum brake
Tyre

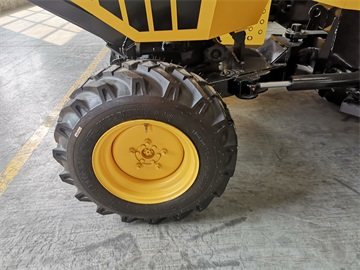

Size 12-16.5
Fuel capacity
Fuel tank 60L
Hydraulic oil tank 60L
Cab Optional
