Crawler Excavator

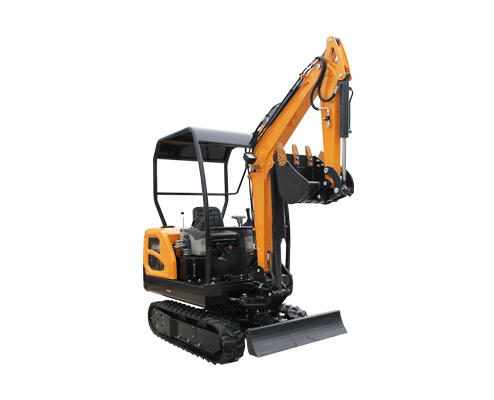

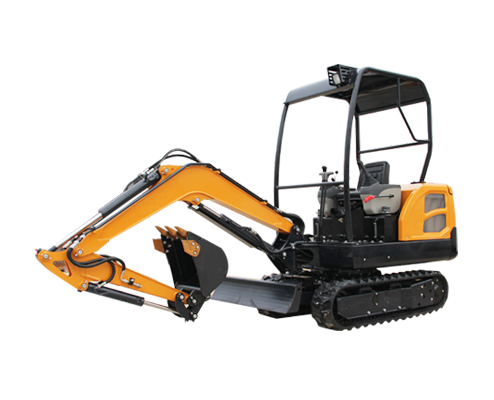

SYNBON Mini Crawler Excavator SY601.8

1.8ton Hydraulic Mini Crawler Excavator Small Digger Rubber Track SY601.8

Description

Operating weight 1800kg

Bucket Capacity  0.1 m3

Power      18.1kW

Overall size   3800*1050*2280mm

Condition:

With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.


can equip with Auger, Wood Grab, Roof, Ripper, Rake

Get a quote

Features & Details

Product Feature  And  Advantage


1.Small size and easy to transport, could be loaded onto light truck or small trailer, four sets could be loaded into one 20GP container to save freight cost.

2.Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency

3.Famous brand hydraulic system parts ensure the stable quality.

4.equipped with double fuel filter to guarantee fuel purity to protect engine

5.boom deflection design meet narrow work condition, reinforced rubber track to protect road

6.extend hydraulic line for various attachments.

7.comfort seat make operator easy to work.

8.Cabin with A/C and Kubota engine is optional.

9.Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower.








Specifications

Engine
ModelLaidong KM385B
power18.1kW/2200rpm
TypeDirect injection, water cooled, natural intake
No. of cylinder3
Main Performance
Swing Speed10--12r/min
Traveling Speed2.8km/H
Grade ability70(35°)%
Traveling Tracking Force15KN
Bucket Digging Force11.5KN
Arm Digging Force9.3KN
Hydraulic System
Hydraulic system working pressure16Mpa
Hydraulic PumpTJHDGear Pump
Hydraulic pump flow2*22 8.8L/min
Swing MotorEaton
Traveling MotorEaton
Fuel Tank Capacity26L
Hydraulic Tank Capacity27L
Overall Dimensions
Overall( L*W*H)3800*1050*2280mm
Ground clearance485mm
Track length1630mm
Track width230mm
Undercarriage width1050mm
Undercarriage ground clearance235mm
Dozer Blade1050*240mm
Operation parameters
Operation Weight1800KG
Bucket Capacity0.1m3
Max. Digging Radius3860mm
Max. Digging Depth2050mm
Max. Digging Height3370mm
Max. Dumping Height2390mm
Max. Dozer Cutting270mm
Max. Dozer Lifting235mm
Boom Deflexion (Left/Right)75/45°
Tail Swing Radius1125mm
Front Min. Swing Radius1720mm
