CONCRETE TROWEL

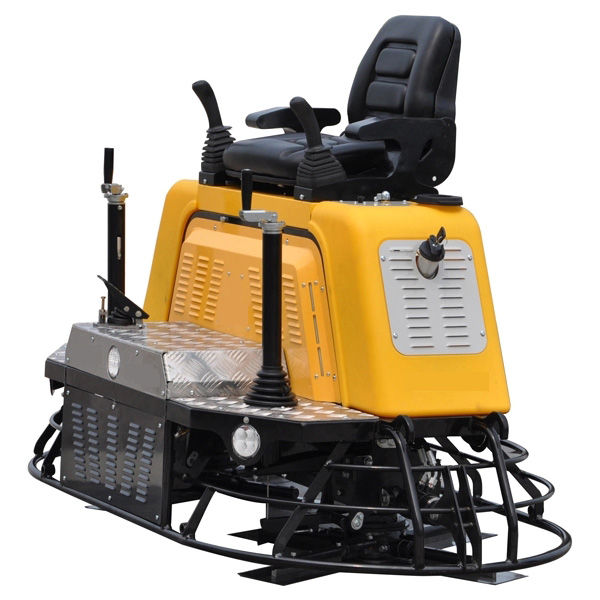

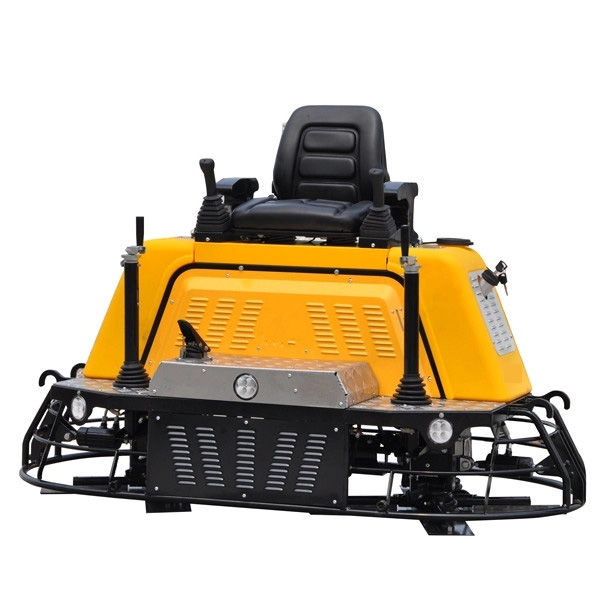

SYCT 278 Ride on concrete trowel

78in SYNBON concrete ride on power trowel machine SYCT278

Description

Operating weight 350kg

Power 22.5hp/3600rpm

Overall size 2060*1030*1350mm

Condition:

used to extract slurry, compact, smooth and polish the concrete surface.



Max module transmission, aluminum alloy box Centrifugal clutch driving mechanism, which has the advantages of large transmission torsion torque and long serving life
Get a quote

Features & Details

Gasoline ride on trowel machine with best price is a concrete surface fine trowel machines. After the construction of the machine than the surface of the artificial construction of the surface more smooth, can greatly improve the density and wear resistance of the concrete surface, Furide concrete machine can improve work efficiency compared to manual work on the efficacy of more than 10 times.


1.HONDA engine, excellent performance, easy to start-up;

2.The transmission is with big modulus and al-alloy case, free from maintenance;

3.Trowel supporting arm is made of heat-treated steel with super diameter carbon structure;

4.Scientific designed centrifugal clutch gear unit with large torque and long life;

5.Adjusting height mechanism of handrail, storage erectly, easy to transport;

6.Plastic treated, anti-rust, anti-corrosion and beautiful.

7.Max module transmission, aluminum alloy box, no maintenance, and long serving life.

8. Blade arm support, and strictly heat-treated structural steel, which is sturdy and durable.

9. Centrifugal clutch driving mechanism, which has the advantages of large transmission torsion torque and long serving life, no maintenance.


Specifications

Working
Operation modeRide-on
Working width78in.(1980mm)
Working speed80-150rpm
Blade
Blade quantity8
Blade size350*150mm
Fixed hole distance4.75 in
Engine
ModelHONDA GX690
TypeGasoline, air cooled, double cylinder
Power22.5hp/3600rpm
Fuel tank volume15L
Lubricant 1.9L
Lubricant L370g/kWh
Dimension
Total Size2060*1030*1350mm
Packing size2140*1100*1400mm
Weight
Weight350kg

Get a quote
