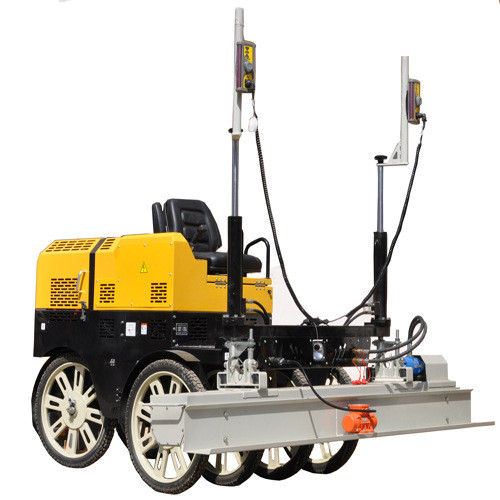

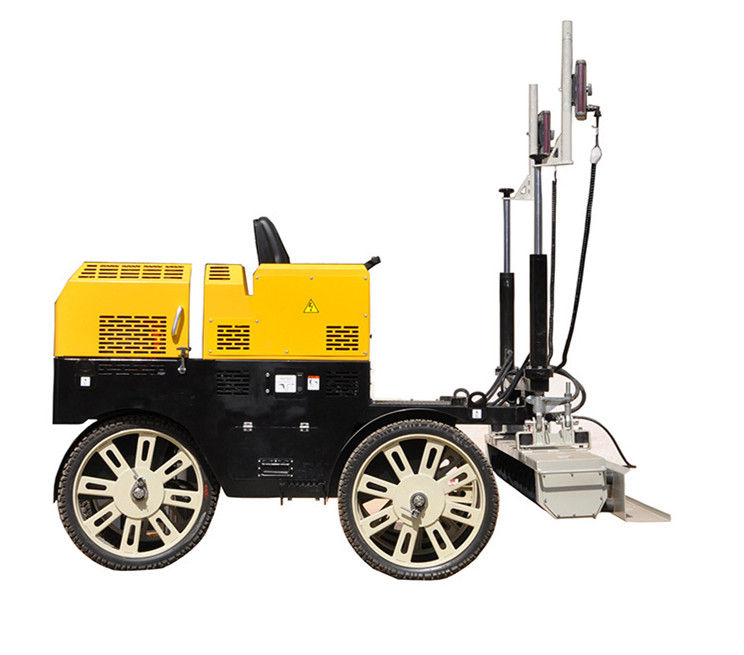

SYCS41 Ride on laser screed
Engine HONDA GX630
Overall size 2717*2760*2380 MM
The Laser screed machine is used for concrete construction in large area,such as workshop,supermarket,warehouse,airport,square and so on,can meet the construction requirement of high flatness and levelness for large area.Also can used in flat, slope, double slope road concrete screeding and rebar concrete project.Co
Features & Details
20HP hydraulic ride on type concrete laser screed machine
Gasoline engine, double cylinder Powerful, low fuel consumption
Full hydraulic operating system, simple and flexible operation.
Riding in driving, wide working range, strong operation
swing head with high flattening speed and high flatness
1.Laser gun is installed separately,which makes it possible to do large area one-time construction while ensuring consistent ground level.The ground level will not be affected by the pattern plates,inducing no random error.Large area one-time construction will reduce joint place,thus lower the follow-up ground maintenance cost.
2.Integrated Leveling Head comprises scraper blade,vibrator,vibrating plate,screw conveyor and other parts,combining working procedures of mixing,leveling,vibrating and etc.to complete the job in a row,so as to increase efficiency and reduce cost.It can keep level of the working surface even when the ground base is uneven with bumps and slope.Square end vibrating plate of 4000 times/min high vibration frequency will ensure concrete floors with great intensity and dispersed deformation strength,thus effectively prevent the occurrence of floor bubble,shell,cracking and unevenness.
3.The elevation is measured automatically by the laser measurement and control system;and the ground’s high point height is automatically controlled by the laser machine’s computer.Based on that,the ground can be more even by precision leveling directly on the concrete layer and ground flatness will not be influenced by the pattern plates.Without having to do the form work,the cost for material and labor as well as the working period will all get reduced.This machine can finish construction area of more than 300 sq.meters per hour,which means 3000-5000 sq.meters per day.
|Model||HONDA GX630 Electric start|
|Type||Gasoline engine, double cylinder|
|Fuel tank volume||40L|
|Driving||4 Hydraulic drive motor|
|Wheel||Solid puncture-proof tyre|
|Laser control system|
|Control type||Microcomputer laser scan|
|Control effect||Flat, slope or double slope(3D)|
|Size and weight|
|Paving type||With auger|
|Auger force||Hydraulic motor|
|Hanging mode||Swing type|
|Screed plate height||350mm|
|Chair position||Forward type|
|Forward and reverse||Hand grip control, stepless speed walking|
