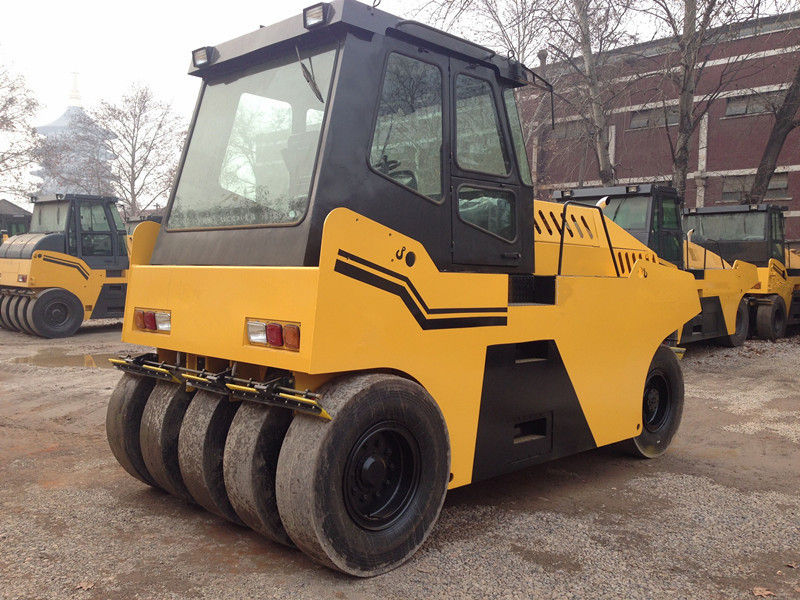

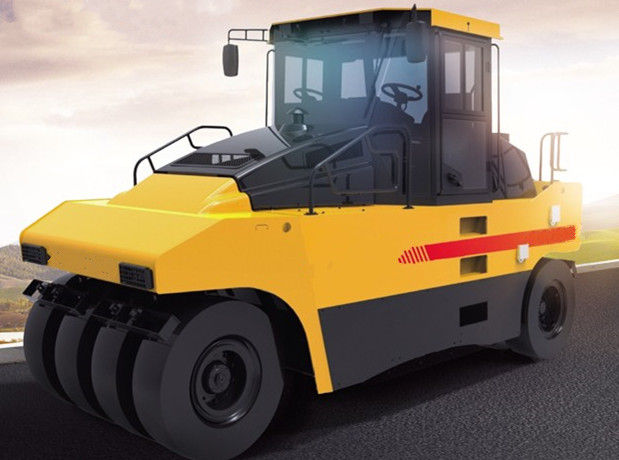

SP165 Pneumatic tire roller
Description
Opateing mass 16000kg
Power 75kw
Overall size 4780*2100*3200mm
Condition:
SP165 Pneumatic tire roller series are designed for the compact cohesive and non-cohesive materials, such as asphalt concrete, cement or lime stabilized soils, gravels, sands and clay mixtures, Rolling Cement Concrete(PCC)in the construction projects, especially suitable for the preparation of the upper courses of high grade
Features & Details
SP165 Pneumatic tire roller series are designed for the compact cohesive and non-cohesive materials, such as asphalt concrete, cement or lime stabilized soils, gravels, sands and clay mixtures, Rolling Cement Concrete(PCC)in the construction projects, especially suitable for the preparation of the upper courses of high grade highway.
Main Features
▲SP165 low gravitational center designed for safe and comfortable operation.
▲SP165 adopt CUMMINS 6BTA diesel engine. Powerful strength, which is suitable to all environments.
▲Three forward speed and two backward changes. Glass fiber reinforced plastic spraying box and multi-layer water
▲filter ensure the stability of the system.
▲Front wheel with automatic adjusting Heating structure to perform better compactness.
Specifications
Model | SP165 | |
Operating mass(Un ballast/Ballast) | 10000/16000 | kg |
Max. travel speed | 14.7 | Km/h |
Tyre quantity(front rear) | 4 5 | pcs |
Min.turning radius | 7500 | mm |
The presses the width | 2280 | mm |
Grade ability | 30 | % |
Overall dimension | 4780*2100*3200 | mm |
Wheelbase | 3700 | mm |
Diesel power | 75 | KW |
Diesel model | Cummins 4BT3.9 |
