COMPACTOR

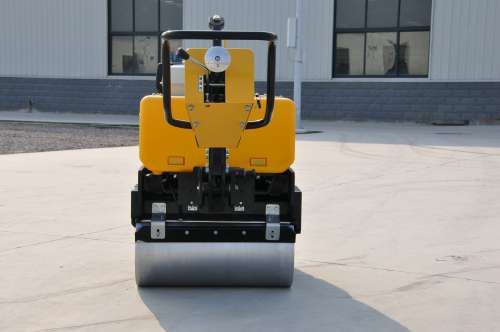

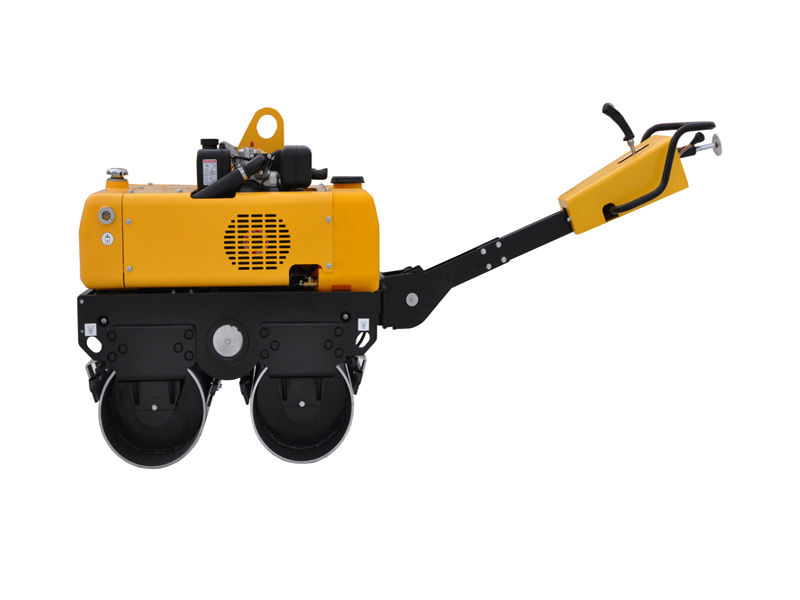

Walk behind double drum vibratory roller SY201H-B

1ton Walk-behind, double steel wheel, hydraulic vibratory road roller

Description

Working weight 860kg

Overall size 2460*732*1800mm

Condition:

It is used to compact the surface of asphalt, compact the engineering foundation such as gravel and sand, and crush the lawn and playground.Roadside, indoor and other small places


diesel power electromagnetic clutch
Get a quote

Features & Details

It is used to compact the surface of asphalt, compact the engineering foundation such as gravel and sand, and crush the lawn and playground.

1. Equipped with diesel power, superior performance and easy to start;

2. The transmission mechanism adopts international ** hydraulic transmission unit, stepless speed change, front and rear walking, convenient commutation;

3, the handrail adopts multi-level adjustment mechanism, which can adapt to the operation of workers of different heights, and can also stand up to reduce transportation space;

4. Adopting NSK (Seiko) bearing made in Japan and MITSUBOSHI (Samsung) triangular belt made in Japan to ensure the working performance of the machine;

5, electromagnetic clutch control vibration, operation is more convenient and convenient;

6, the surface spray, beautiful, rust and corrosion resistance




Specifications

Run
Speed0-3.5km/h(Forward/ Backward)
Steering angle±15°
Climbing capacity in theory25%
Compaction
Static load forward/back60.7/65.7 N/cm
Nominal amplitude0.5mm
Vibration frequency65Hz
Exciting force17kN
Water tank volume38L
Working
DriveVariable plunger pump, constant displacement hydraulic motor
VibrationMechanical drive, electromagnetic clutch

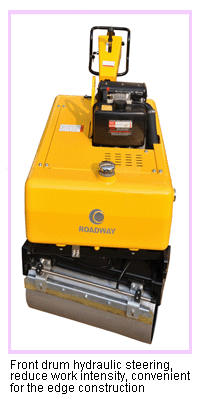

SteeringHydraulic
Engine
Model186F
TypeDiesel, air-cooled, single cylinder
Power8.0hp/3600rpm
Fuel tank volume5.5L
Fuel consumption280g/kw/h
Dimension
Width of steel drum680mm
Diameter of steel drum355mm
Tread650mm
Total size (L*W*H)2460*732*1800mm
Packing size1460*830*1910mm
Weight
Working weight860kg
