Tractor

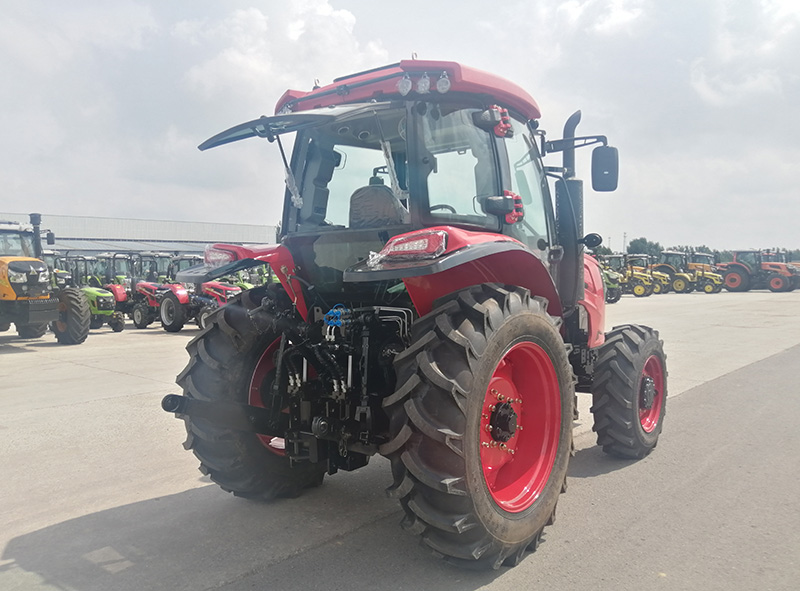

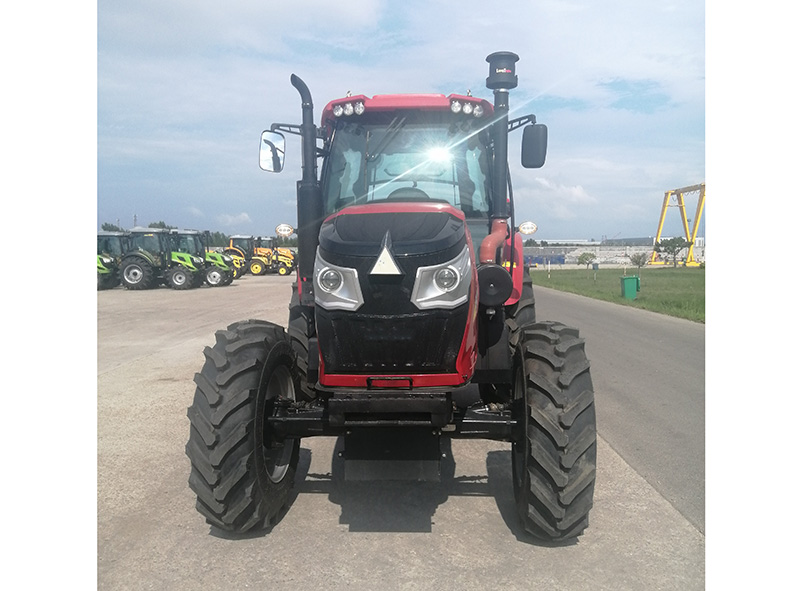

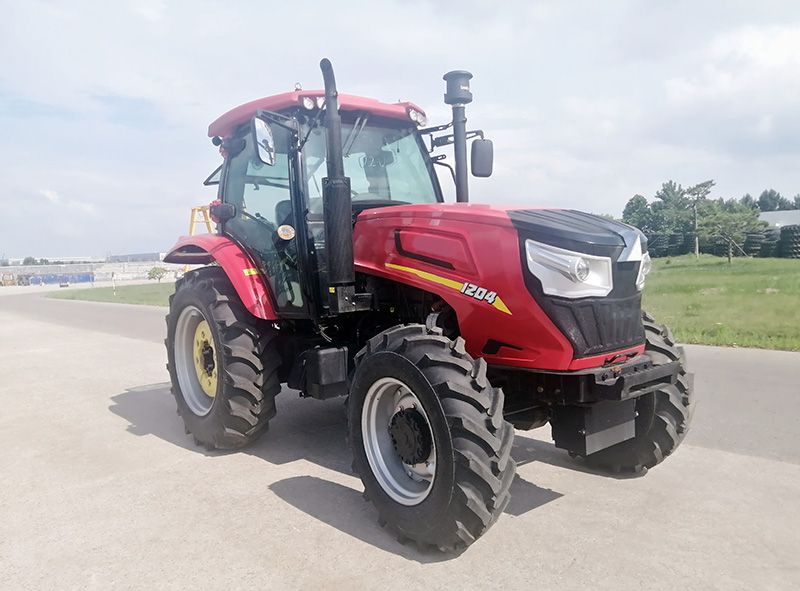

SYNBON 120HP Wheel Tractor SY1204

High quality! best hydraulic tractor farme machinery agricultural equiment

Description

Model: SY1204
Horsepower: 120HP/88.2KW
Length*Width*Height: 4350*2130*2870mm
Front / Rear Wheel Tire: 13.6-24/16.9-34

Condition:
generally applicable for the small and medium-sized farmlands and complex operations of individual farmers such as farmland, transportation, construction and etc.

Reinforced chassis, heavy weight, strong vehicle grip,higher efficiency.High performance, simple operation and wide application.
A variety of auxiliary tools can be installed to work in orchards, farmland, engineering.

Get a quote

Features & Details

Packaging & Shipping
3 units in 1*40HQ container

Features:
SY1204 tractor:120hp, 4wd,four/six cylinder diesel engine,aumahr hood,power steering,16f+8r shifts,double stage cluth,front tyre:13.6-24 rear tyre:16.9-34 ,bouble speed pto: 540/1000rpm( 760/850 rpm ).big fuel tank, with fan cabin,with front and rear ballast.

Specifications

Model

SY1204

Horsepower(hp)

120

Type

4×4 Wheeled tractor

Overall dimension(mm)

length

4350

width

2130

Height

2870

Tread(mm)

Front Wheel

1625

Rear Wheel

1608-1996

wheel base(mm)

2530

Ground Clearance(mm)

420

Structure weight(kgs)

4100

Front Wheel ballast(kg)

440

Rear Wheel ballast(kg)

172

Engine

Type

vertical, water cooled, four/six cylinder,four stork

Rated    rev. (r/min)

2300

Rated power (KW)

88.2

clutch

Dry-friction,double stage

Transmission system

gearbox

16F+8R

central transmission

Gear sector

Tractor brake

Hydraulic brake,discs

Tyre

front wheel

12.4-24/13.6-24

Rear wheel

16.9-34

PTO shaft rev.

760/850 RPM(540r/min and 1000r/min)
