Backhoe Loader SY747A

LEAVE MESSAGE

 //

PRODUCTS

Overall Weight:                    7640 KG

Rated Loading Weight:        2500 KG

Bucket Capacity:                  1.4m3

Backhoe Capacity:                0.3 m3

Rated Power of Engine:        74KW

Condition :

Excavation loading dual-purpose machinery for construction, municipal, pavement construction, etc.

Excavation, front shovel, mini tractor backhoe loader.

Yuchai turbocharged engine with strong power, low noise and reliable performance.



  • Description

    Backhoe loaders are often used in a variety of projects that require excavation and treatment of soil. For example, trenches need to be dug to lay pipes and underground cables to lay the foundation for the building. In order to establish a drainage system, trenches need to be excavated. While many other tools can do the job, the tap loader can significantly improve efficiency. In contrast, backhoe loaders are much smaller than large single-function devices such as crawler excavators. They can walk around different construction sites and even run on the road. While some small loaders and excavator equipment may be smaller than backhoe loaders, using a backhoe loader can save significant time and money if the contractor also needs a digging and loader.


    Features

    1.its forward and backward directions are switched by electric hydraulic control.

    2.The loader working device is an eight-bar automatic leveling mechanism.

    3. Its chassis is an integral type special chassis featured in strong rigidity, impact resistance and compact size.

    4.four-cylinder supercharged engine is featured in high fuel efficiency, low emission and large power margin.


    Benefits

    1.The bucket is leveled automatically while hoisting, in order to avoid scattering and ensure stable working.

    2.The excavator working device can rotate 180 degrees along the gyration center at the back of the frame.

    3.The A/H-shaped stabilizer and the center-positioned excavating device are strong in working stability.

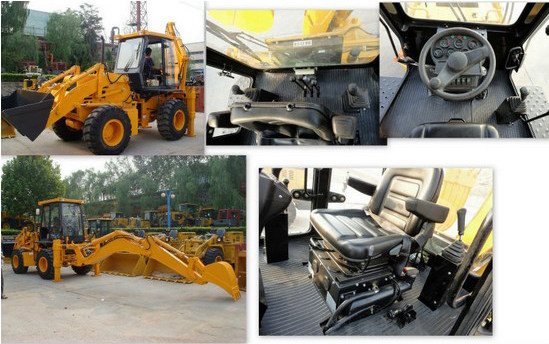

    Detail Picture

    SYNBON Backhoe loader Series



    Packaging & Shipping

    1 sets in 1*40HQ container


    FAQ

    Q1. What is your production strength?

    Over 15 years of wheel loader production experience, with an annual output of 100 units.

    Our wheel loader have passed the ISO 9001 international quality certification system and China 3C quality system. We have obtained EAC and CE certification abroad.


    Q2 Which countries have you exported?

    Myanmar, Thailand, Kazakhstan, Uzbekistan, Russia, Ukraine, Australia, Brazil, Colombia, Germany, Czech Republic, Sudan, Tunisia, Benin, Congo.


    Q3 What is your terms of payment?

    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.


    Q4.  How about your delivery time?

    A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some in stock.


    Q5. What is your warranty policy?

    A: We can supply one year warranty for our machines. We will provide parts as free within warranty. We can provide internet or calling service at any time.

  • ModelSY747A
    Overall Operating Weight7640KG
    Transport Dimension
    mm L*W*H 5910×2268×3760
    Wheel base 2250mm
    Min. Ground Clearance300mm
    Bucket Capacity 1.4m³
    Breakout Force 38KN
    Loading Lifting Capacity2500KG
    Bucket Dumping Height2742mm
    Bucket Dumping Distance1062mm
    Digging Depth 52mm
    Backhoe Capacity 0.3m³
    Max. Digging Depth 4082mm
    Swing Angle of Excavator Grab190°
    Max. Pulling Force 39KN
    Engine
    ModelCommics(dongfeng ) Engine
    TypeIn Line Direct injection Four-Stroke and Injection Combustion Chamber
    Cylinder-Inside Diameter*Stroke4-102×120
    Rated Power 74KW
    Rated Speed 2200r/min
    Min. Fuel Consumption≤216g/km.h
    Max.Torque≥410N.M/1500r/min
    Displacement 3.9L
    Steering System
    Model of Steering DeviceBZZ5-250
    Steering Angle ±36 °
    Min. turning radius 5018mm
    Pressure of the system12Mpa
    Transmission System Torque Converte
    Model YJ280
     TypeSingle-stage Three Elements
     Max. Efficiency 84.40%
     Inlet Pressure 0.4Mpa—0.55 Mpa
     Outlet Pressure 1.2Mpa—1.5 Mpa
     Cooling MethodOil-cooling Pressure Circulation
     Gearbox
     TypeFixed Shaft Power Transmission
    Oil Pressure of Clutch1373Kpa—1569 Kpa
     GearsTwo Gears Ahead, Two Gears Astern
    Max.Speed22Km/h
     Brake System
    Service BrakeAir Over Oil Caliper Brake
     External Type
    Self-balance
    Self-regulation
    Emergency BrakeEmergency Brake
    Manual Operation Power Terminating Brake
    Hydraulic System
    Digging Power of Excavator Grab46.5KN
    Digging Power of Dipper31KN
    Bucket Lifting Time 5.4S
    Bucket Lowering Time3.1S
    Bucket Discharge Time2.0S
    Axle
    ManufacturerFeicheng Axle Factory
    Main Transmission TypeDouble Reduction
    Rated Loader of Axle7.5T
    Final ReducerSingle Stage Final Reducer
